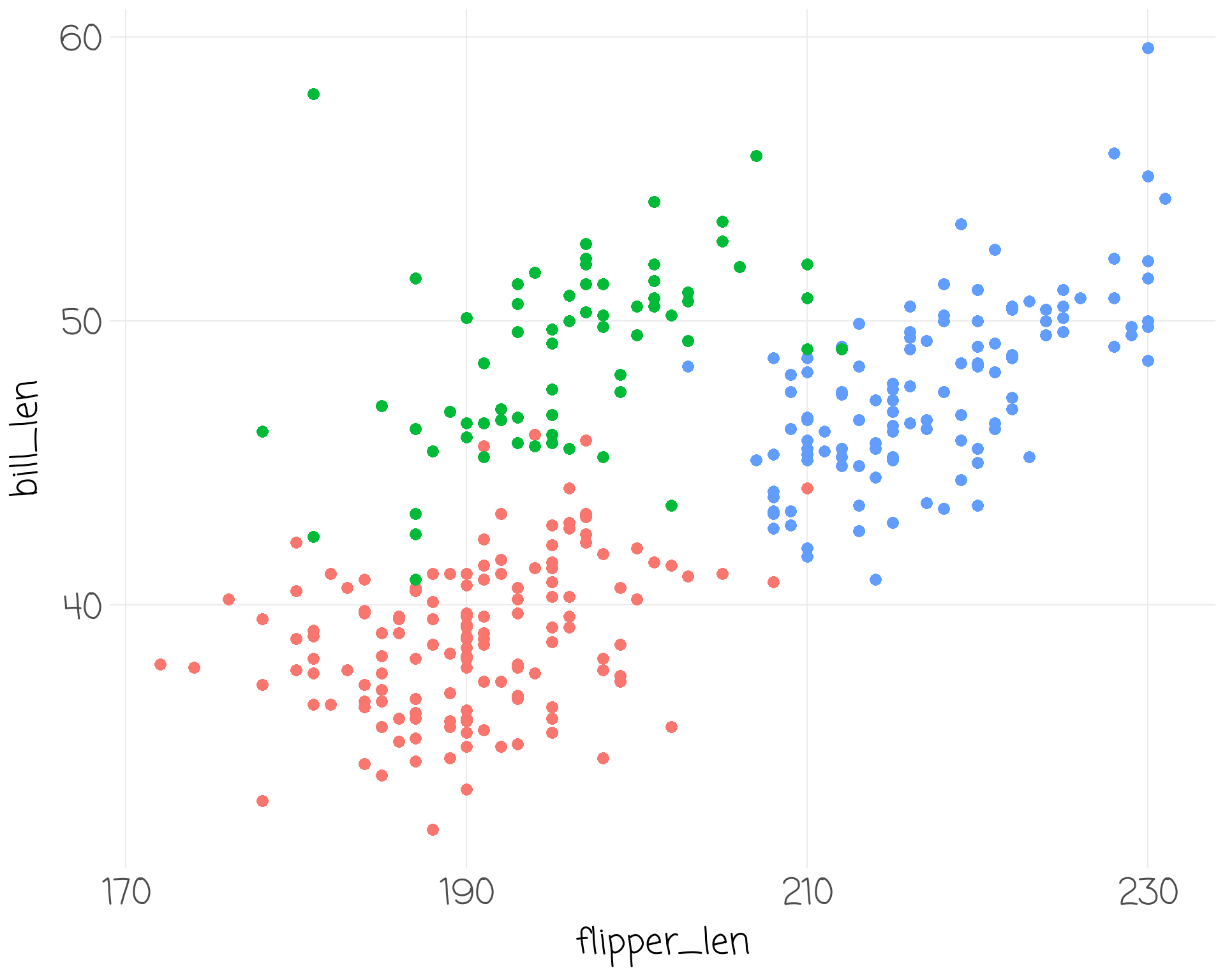

ggplot Runthrough
ggplot Runthrough
ggplot Runthrough
ggplot Runthrough
ggplot Runthrough
ggplot Runthrough
ggplot Runthrough
ggplot Runthrough

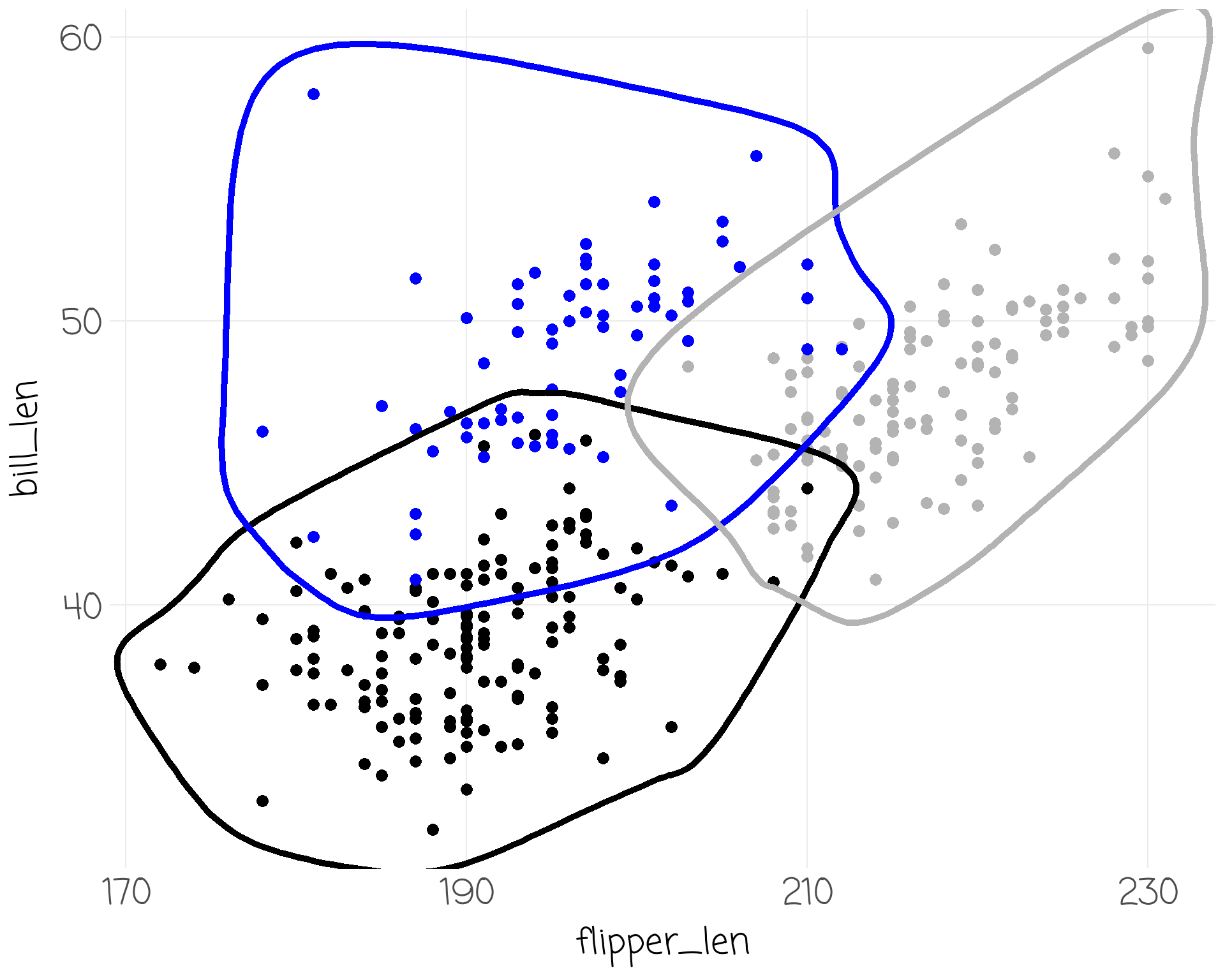

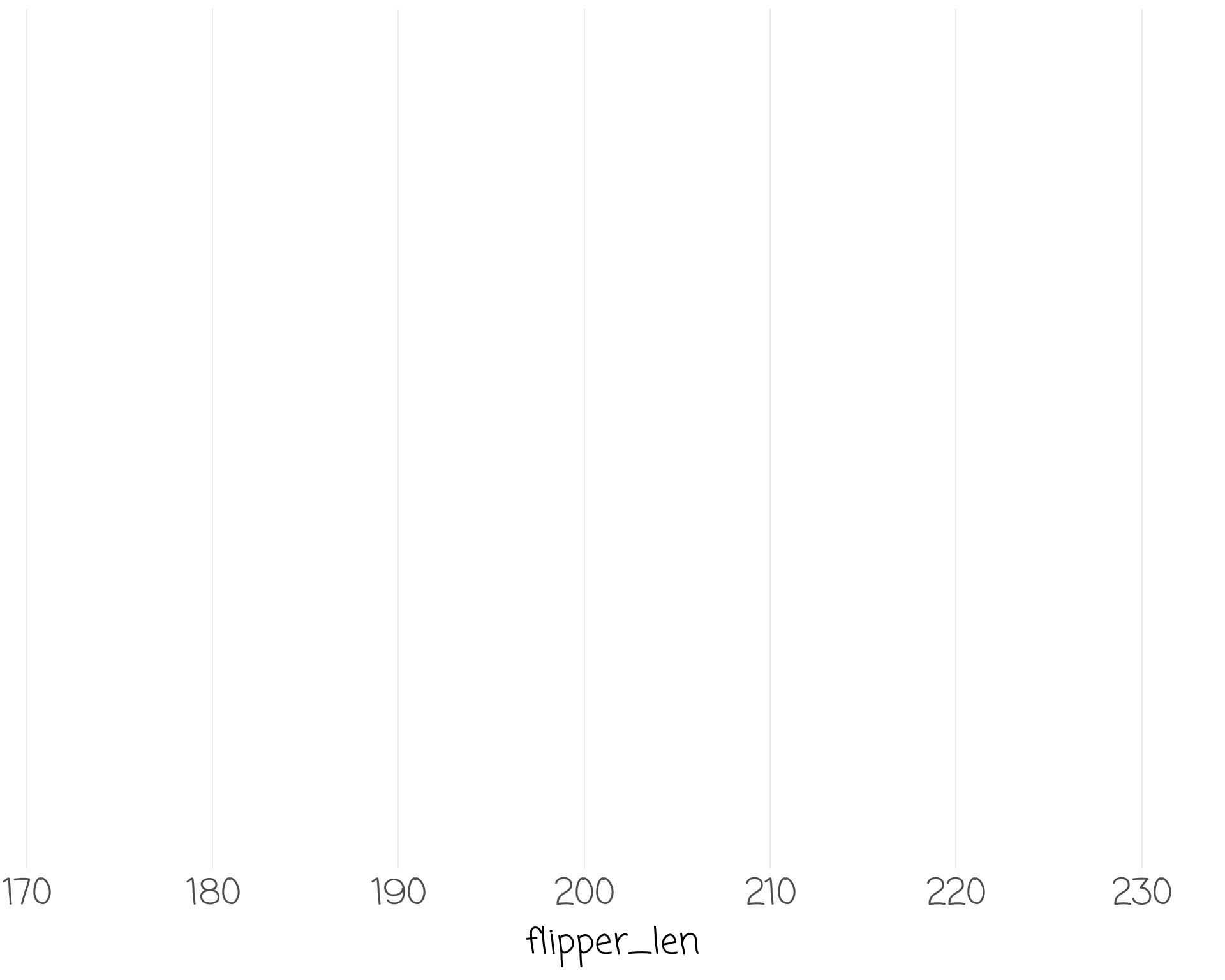

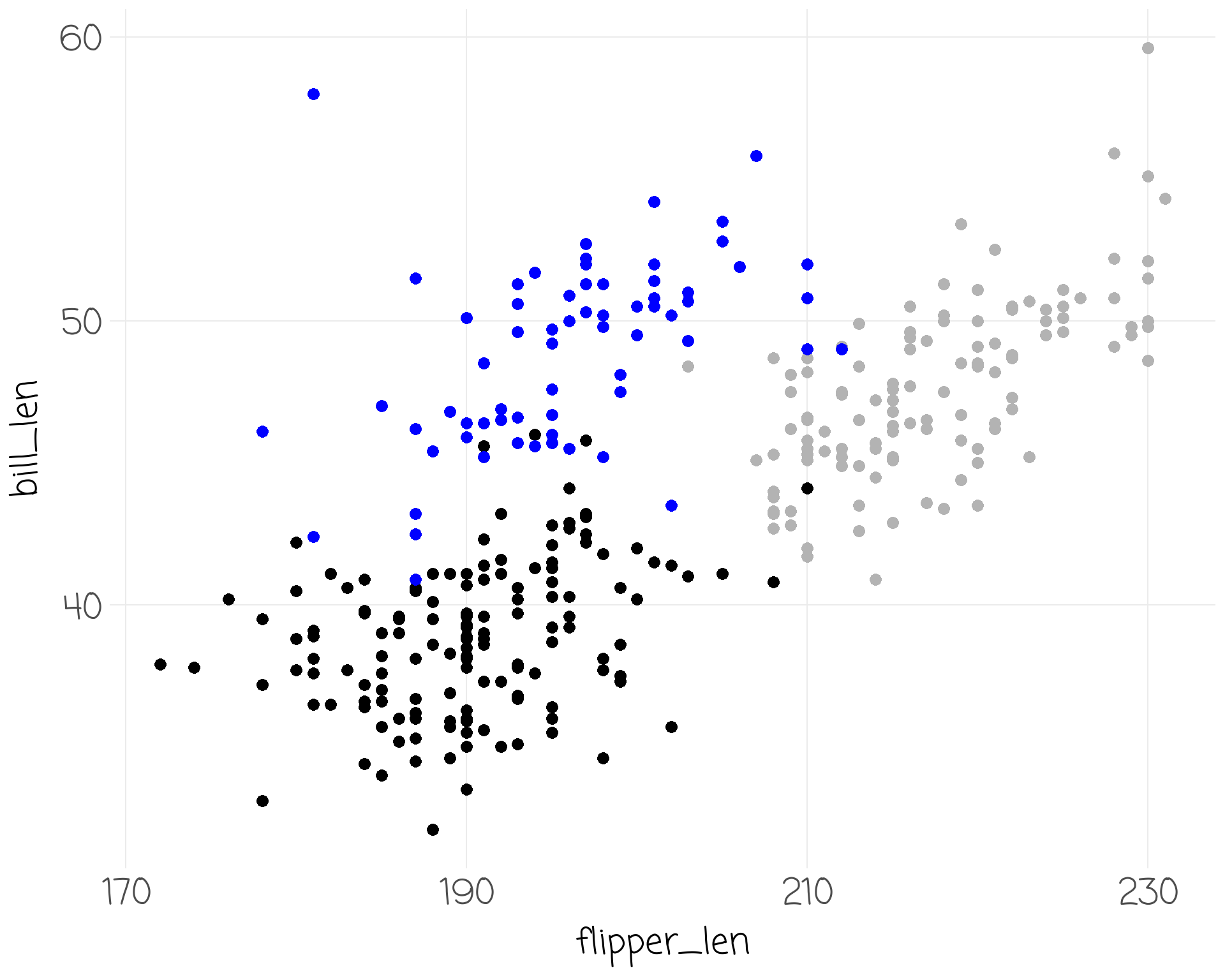

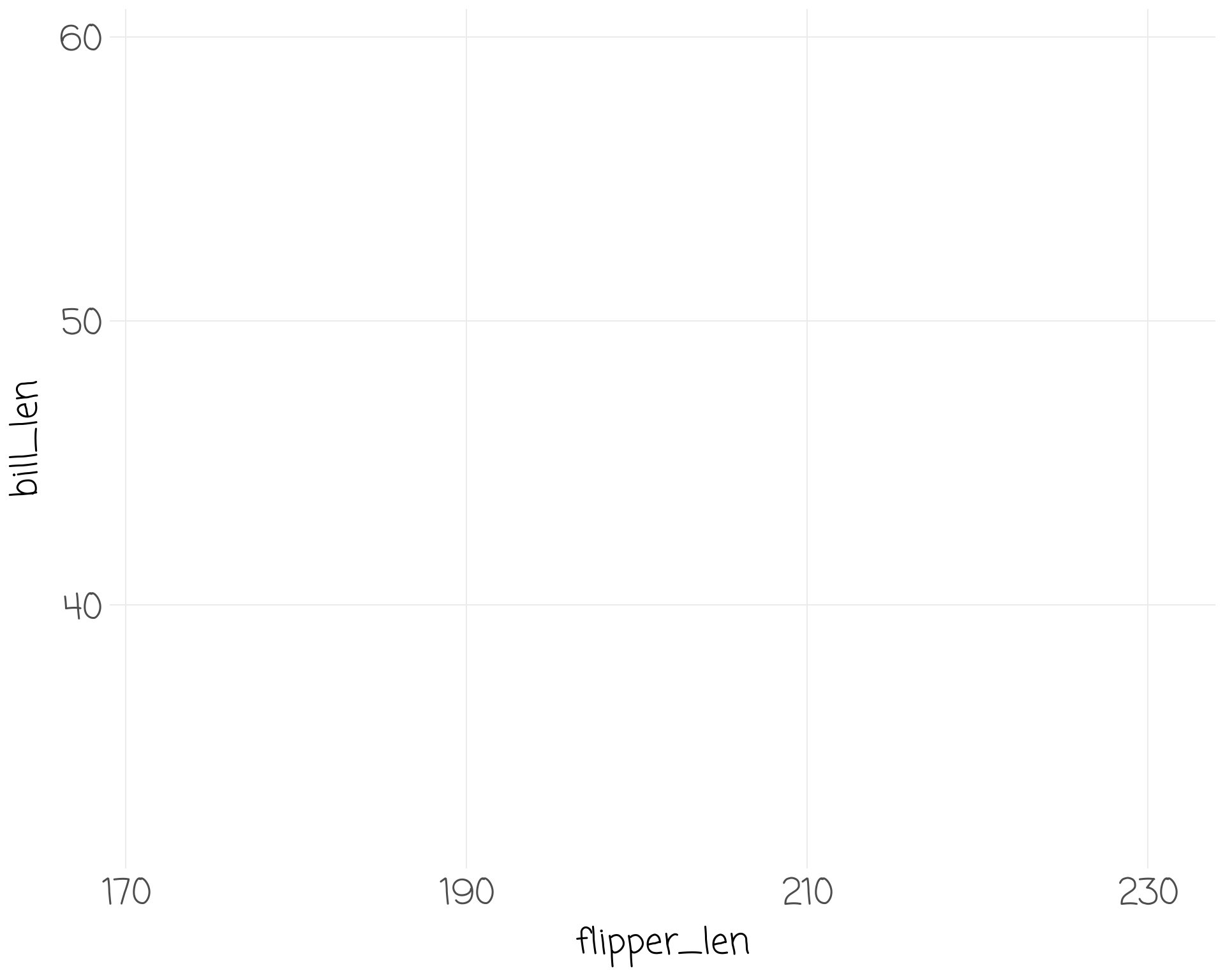

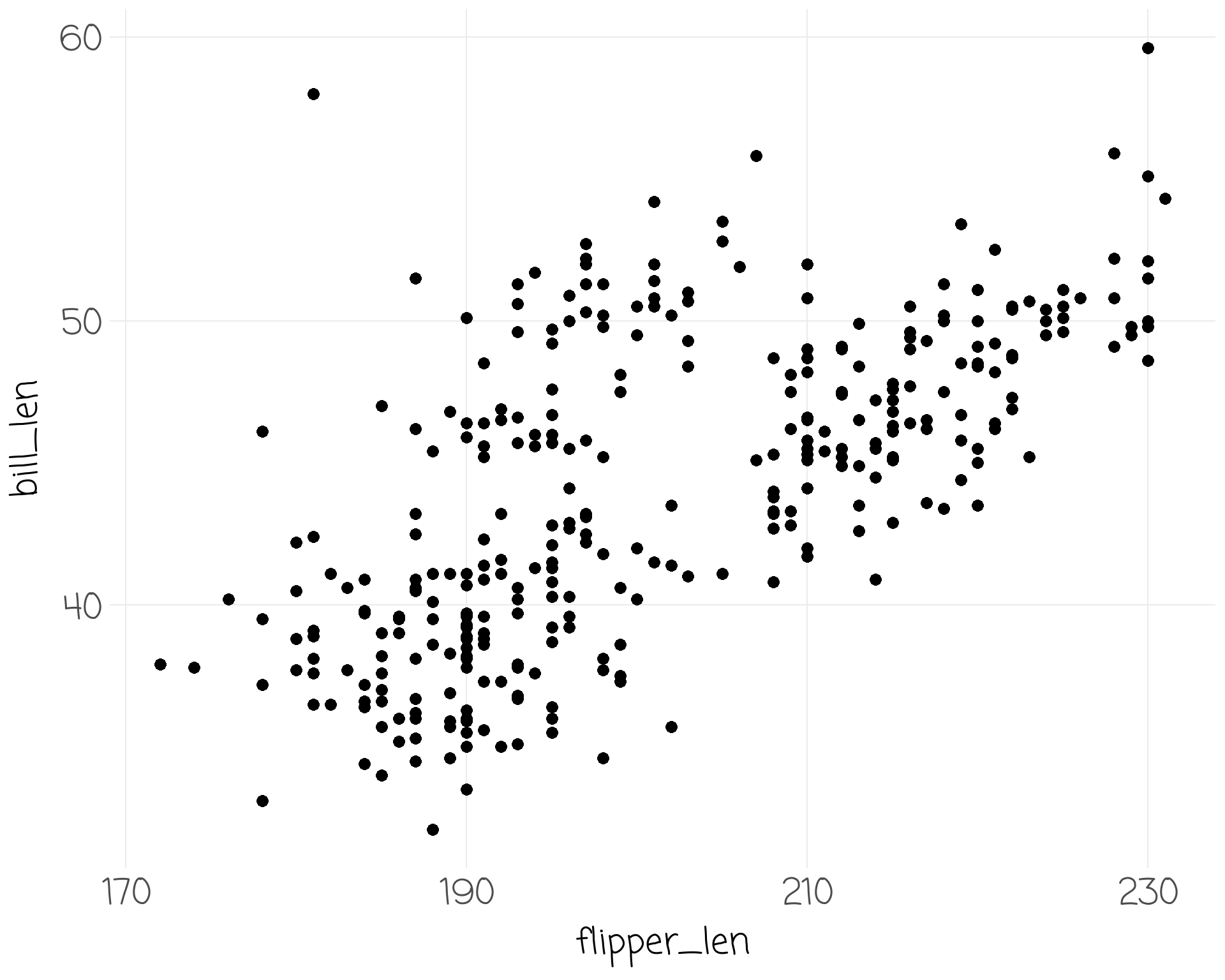

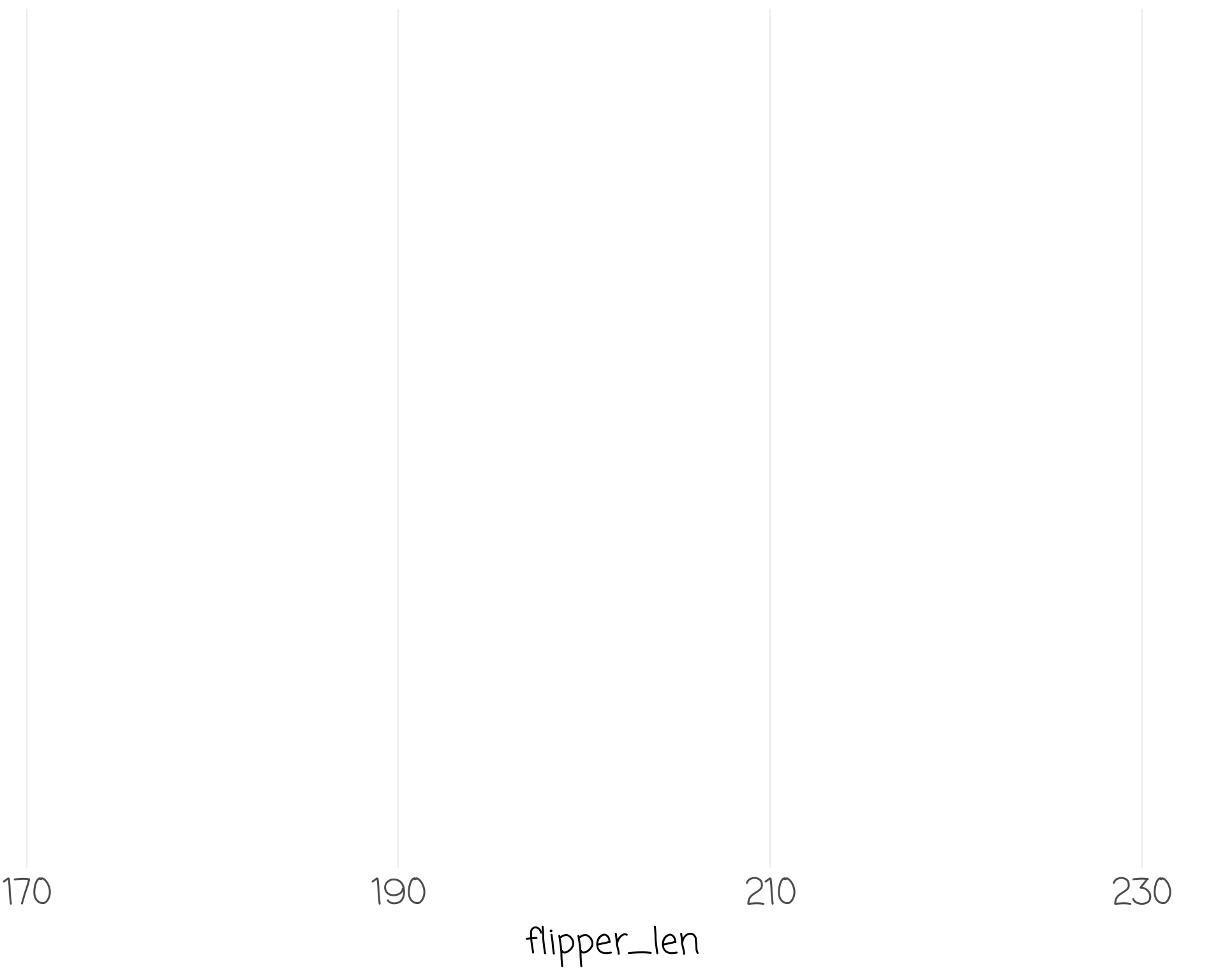

penguins %>% drop_na() %>%
ggplot() +
aes(x = flipper_len) +
scale_x_continuous(breaks = seq(170, 230, by = 20)) +
aes(y = bill_len) +
geom_point(size = 3, show.legend = F) +
aes(colour = species) +
scale_color_manual(values = c("black", "blue", "grey70")) +
ggalt::geom_encircle(size = 5, show.legend = FALSE)

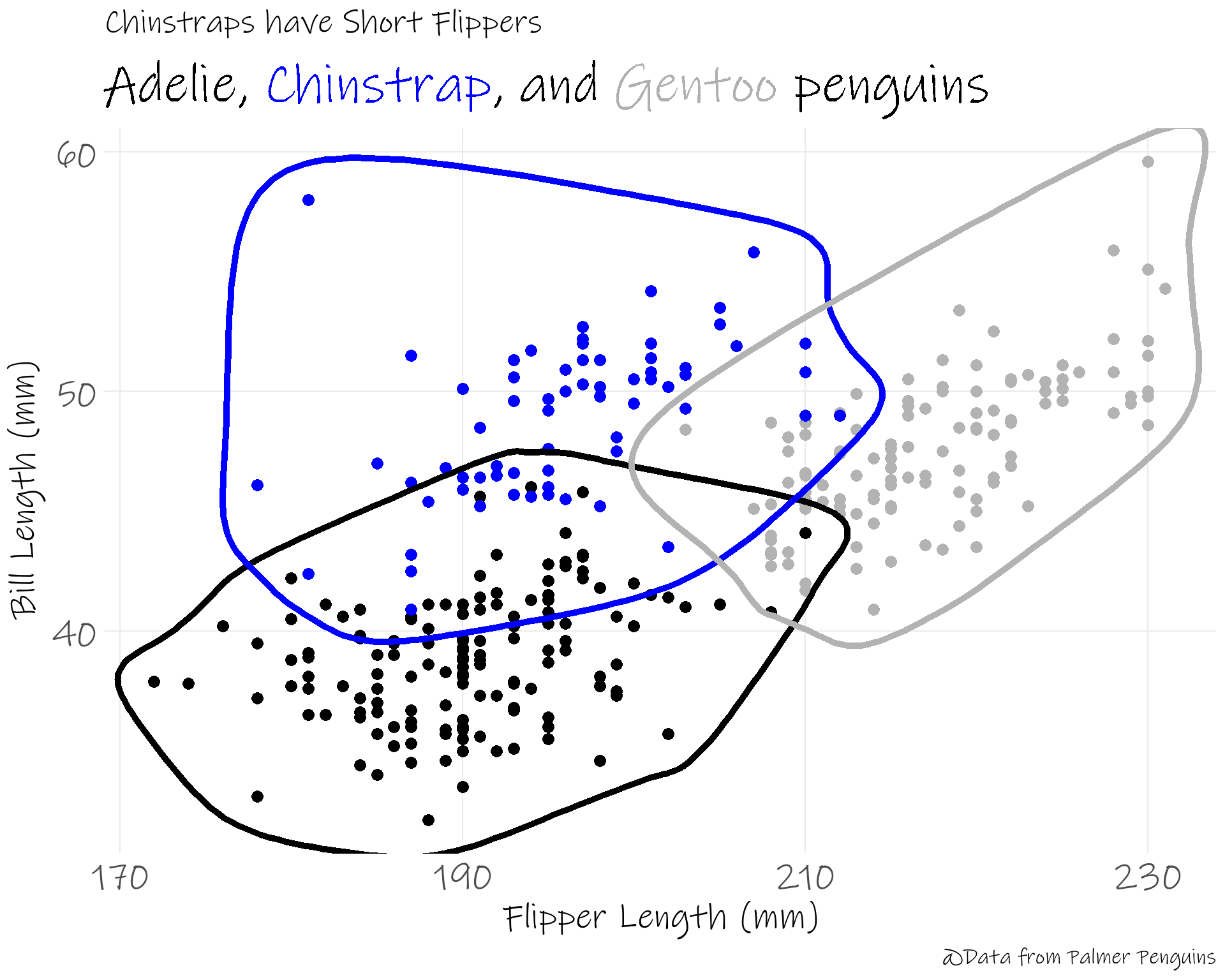

ggplot Runthrough

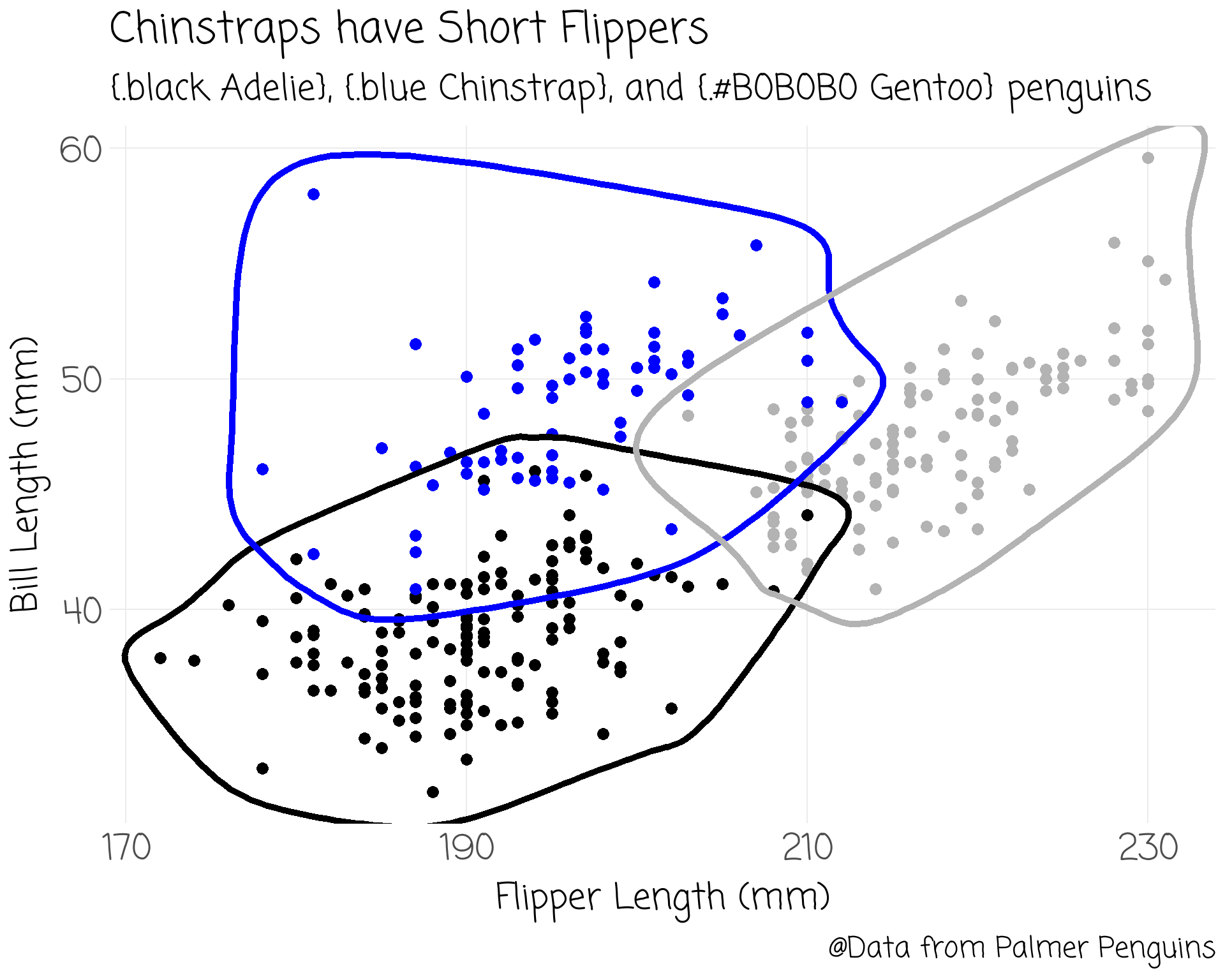

penguins %>% drop_na() %>%
ggplot() +
aes(x = flipper_len) +
scale_x_continuous(breaks = seq(170, 230, by = 20)) +
aes(y = bill_len) +
geom_point(size = 3, show.legend = F) +
aes(colour = species) +
scale_color_manual(values = c("black", "blue", "grey70")) +
ggalt::geom_encircle(size = 5, show.legend = FALSE) +
labs(title = "Chinstraps have Short Flippers",
subtitle = "{.black Adelie}, {.blue Chinstrap}, and {.#B0B0B0 Gentoo} penguins",
x = "Flipper Length (mm)",
y = "Bill Length (mm)",
caption = "@Data from Palmer Penguins")
ggplot Runthrough

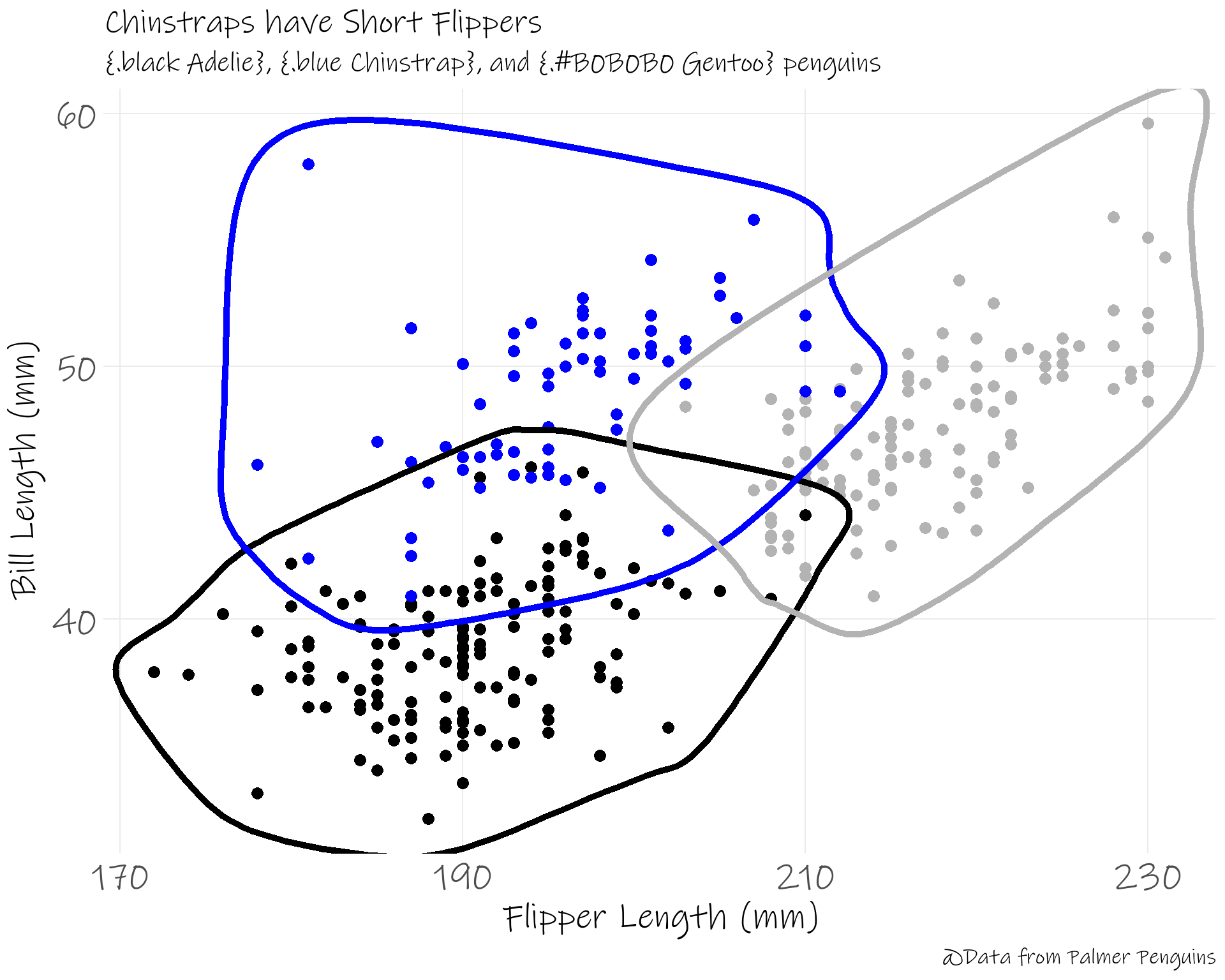

penguins %>% drop_na() %>%
ggplot() +
aes(x = flipper_len) +
scale_x_continuous(breaks = seq(170, 230, by = 20)) +
aes(y = bill_len) +
geom_point(size = 3, show.legend = F) +
aes(colour = species) +
scale_color_manual(values = c("black", "blue", "grey70")) +
ggalt::geom_encircle(size = 5, show.legend = FALSE) +
labs(title = "Chinstraps have Short Flippers",
subtitle = "{.black Adelie}, {.blue Chinstrap}, and {.#B0B0B0 Gentoo} penguins",
x = "Flipper Length (mm)",
y = "Bill Length (mm)",
caption = "@Data from Palmer Penguins") +
theme(text = element_text(family = "Ink Free", size = 32))
ggplot Runthrough
penguins %>% drop_na() %>%
ggplot() +
aes(x = flipper_len) +
scale_x_continuous(breaks = seq(170, 230, by = 20)) +
aes(y = bill_len) +
geom_point(size = 3, show.legend = F) +
aes(colour = species) +
scale_color_manual(values = c("black", "blue", "grey70")) +
ggalt::geom_encircle(size = 5, show.legend = FALSE) +
labs(title = "Chinstraps have Short Flippers",
subtitle = "{.black Adelie}, {.blue Chinstrap}, and {.#B0B0B0 Gentoo} penguins",
x = "Flipper Length (mm)",
y = "Bill Length (mm)",
caption = "@Data from Palmer Penguins") +
theme(text = element_text(family = "Ink Free", size = 32)) +
theme(plot.subtitle = element_marquee(width = 1))
ggplot Runthrough
penguins %>% drop_na() %>%
ggplot() +
aes(x = flipper_len) +
scale_x_continuous(breaks = seq(170, 230, by = 20)) +
aes(y = bill_len) +
geom_point(size = 3, show.legend = F) +
aes(colour = species) +
scale_color_manual(values = c("black", "blue", "grey70")) +
ggalt::geom_encircle(size = 5, show.legend = FALSE) +
labs(title = "Chinstraps have Short Flippers",
subtitle = "{.black Adelie}, {.blue Chinstrap}, and {.#B0B0B0 Gentoo} penguins",
x = "Flipper Length (mm)",
y = "Bill Length (mm)",
caption = "@Data from Palmer Penguins") +
theme(text = element_text(family = "Ink Free", size = 32)) +
theme(plot.subtitle = element_marquee(width = 1)) +
facet_grid(~sex)

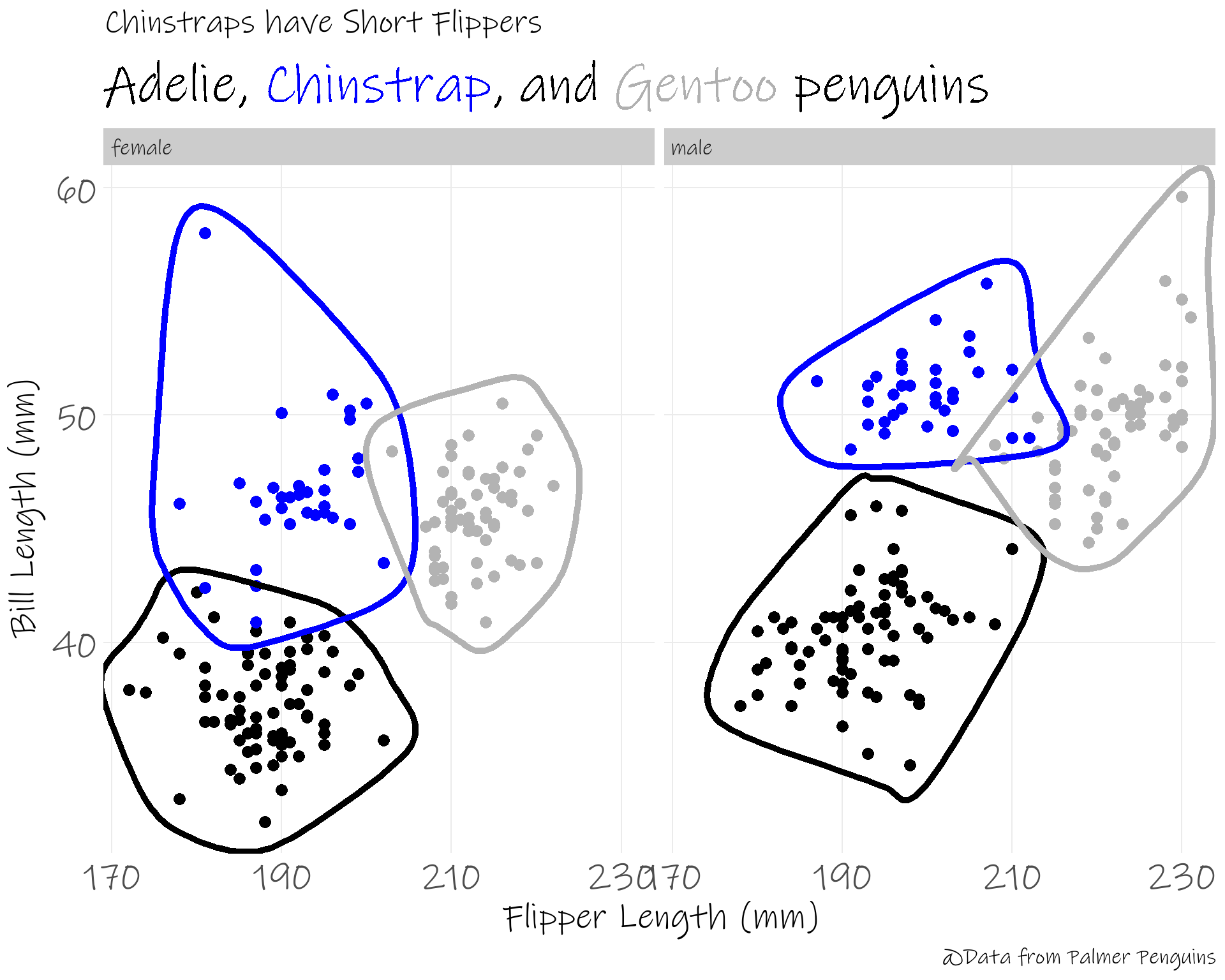

ggplot Runthrough
penguins %>% drop_na() %>%
ggplot() +
aes(x = flipper_len) +
scale_x_continuous(breaks = seq(170, 230, by = 20)) +
aes(y = bill_len) +
geom_point(size = 3, show.legend = F) +
aes(colour = species) +
scale_color_manual(values = c("black", "blue", "grey70")) +
ggalt::geom_encircle(size = 5, show.legend = FALSE) +
labs(title = "Chinstraps have Short Flippers",
subtitle = "{.black Adelie}, {.blue Chinstrap}, and {.#B0B0B0 Gentoo} penguins",
x = "Flipper Length (mm)",
y = "Bill Length (mm)",
caption = "@Data from Palmer Penguins") +
theme(text = element_text(family = "Ink Free", size = 32)) +
theme(plot.subtitle = element_marquee(width = 1)) +
facet_grid(~sex)

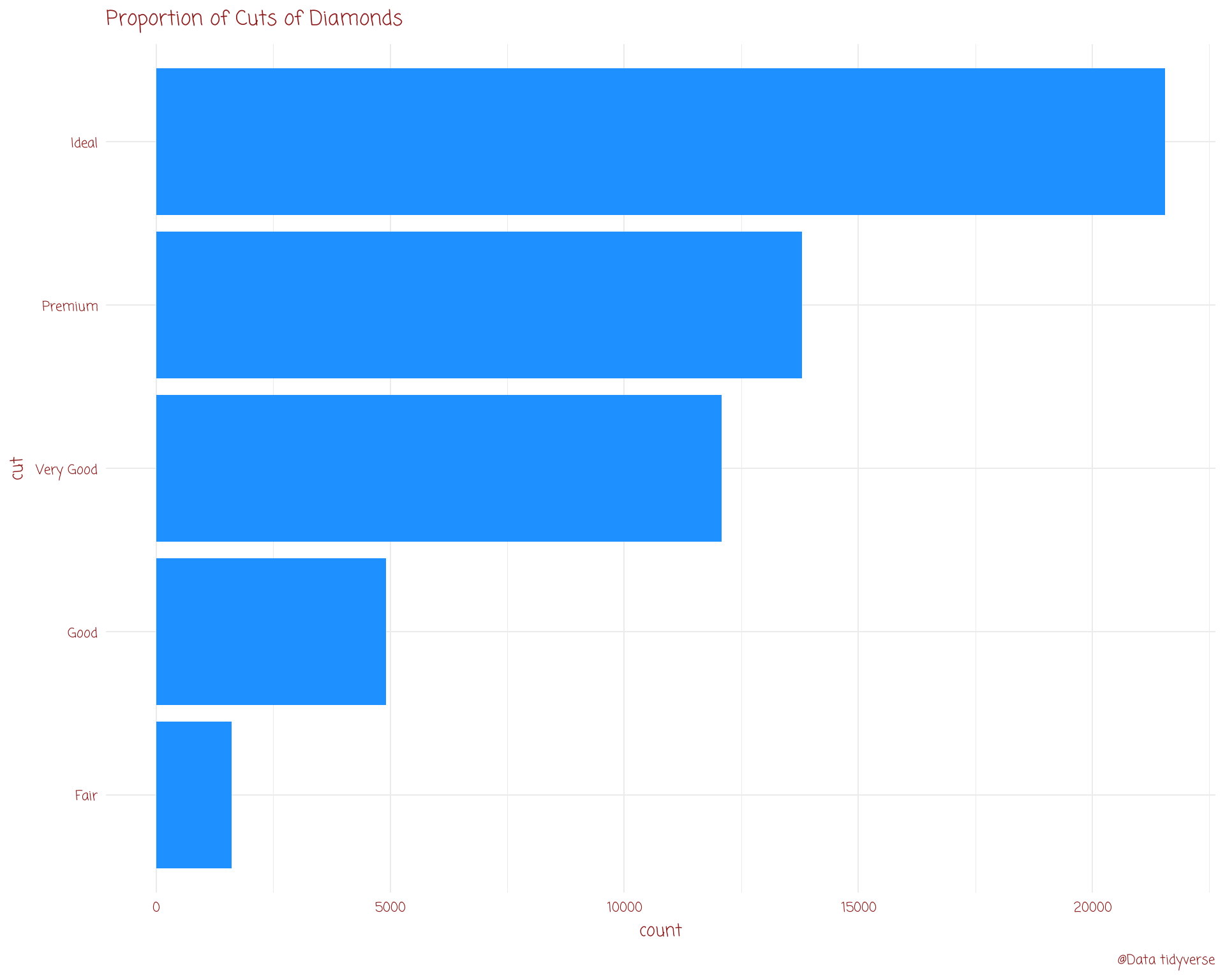

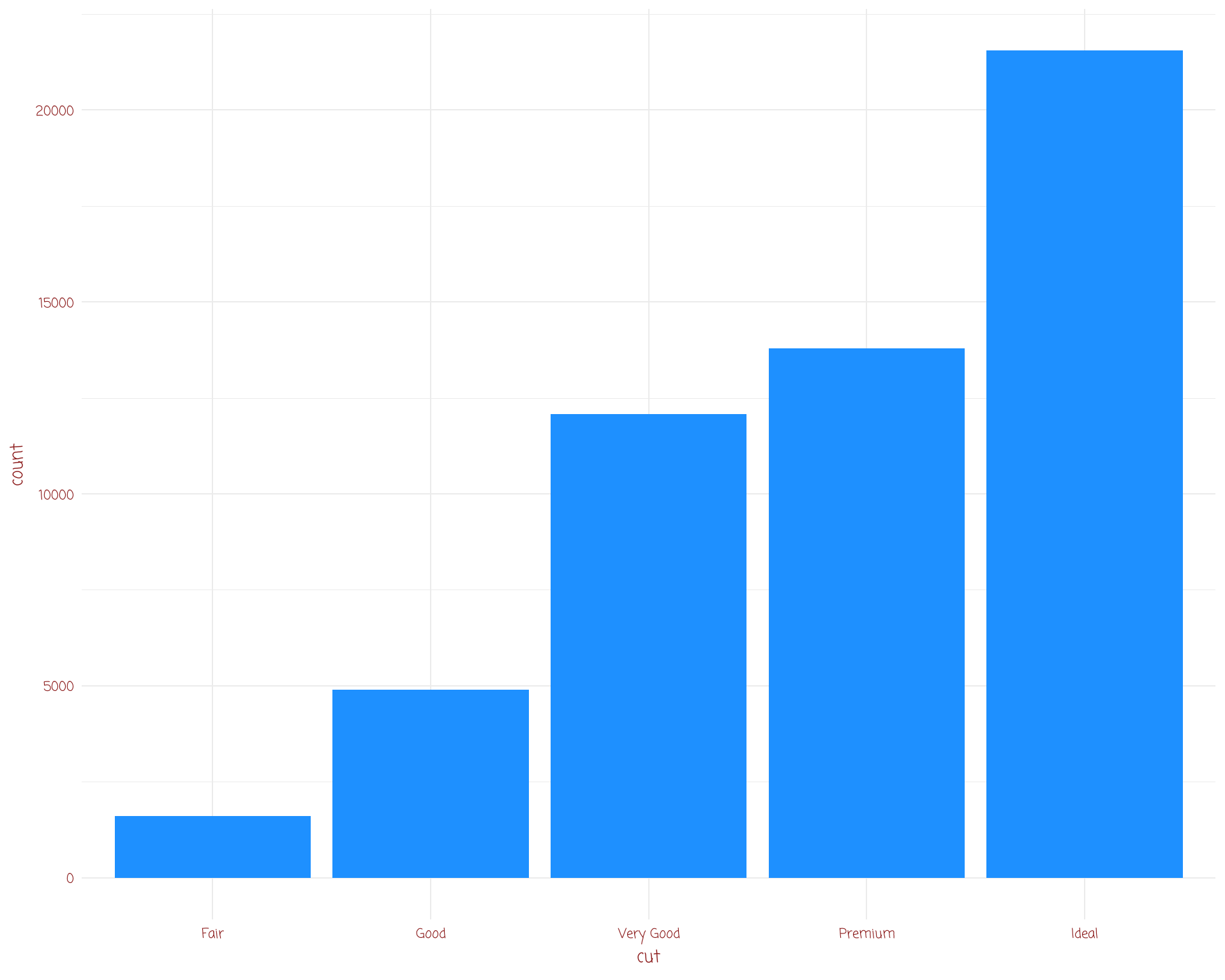

Bar Plots
Bar Plots
Bar Plots
Bar Plots
Bar Plots
Bar Plots
Bar Plots
Bar Plots
Bar Plots
Bar Plots

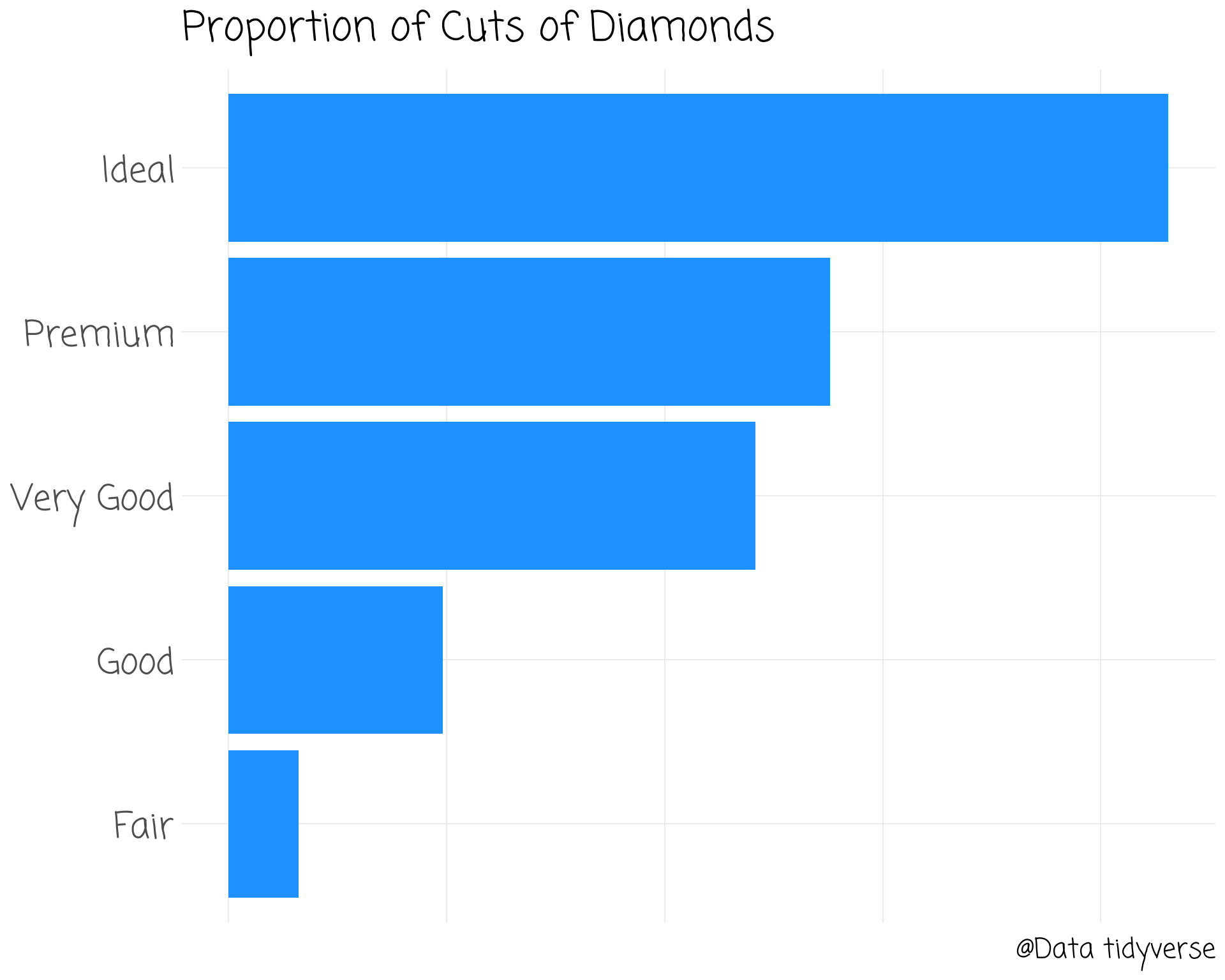

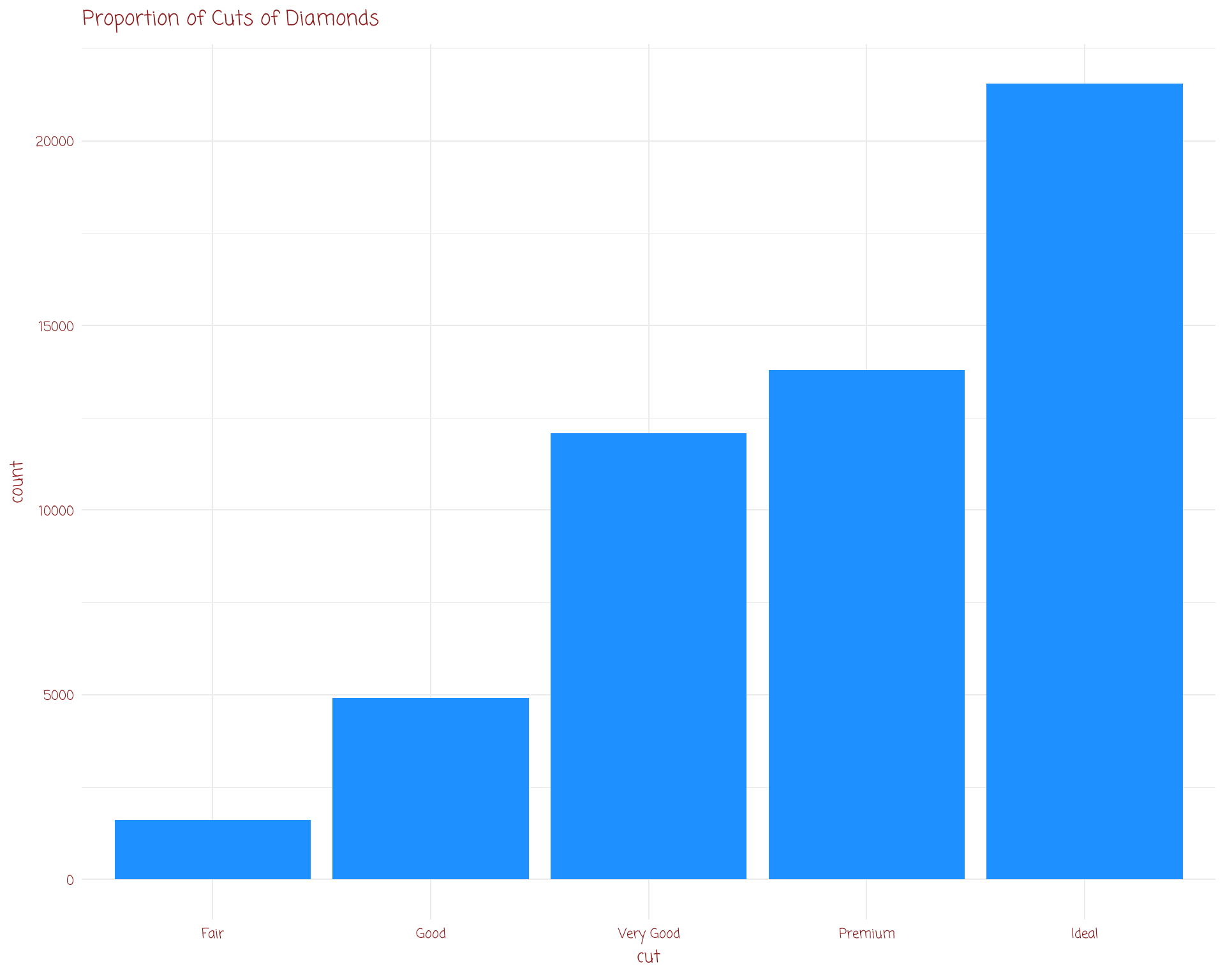

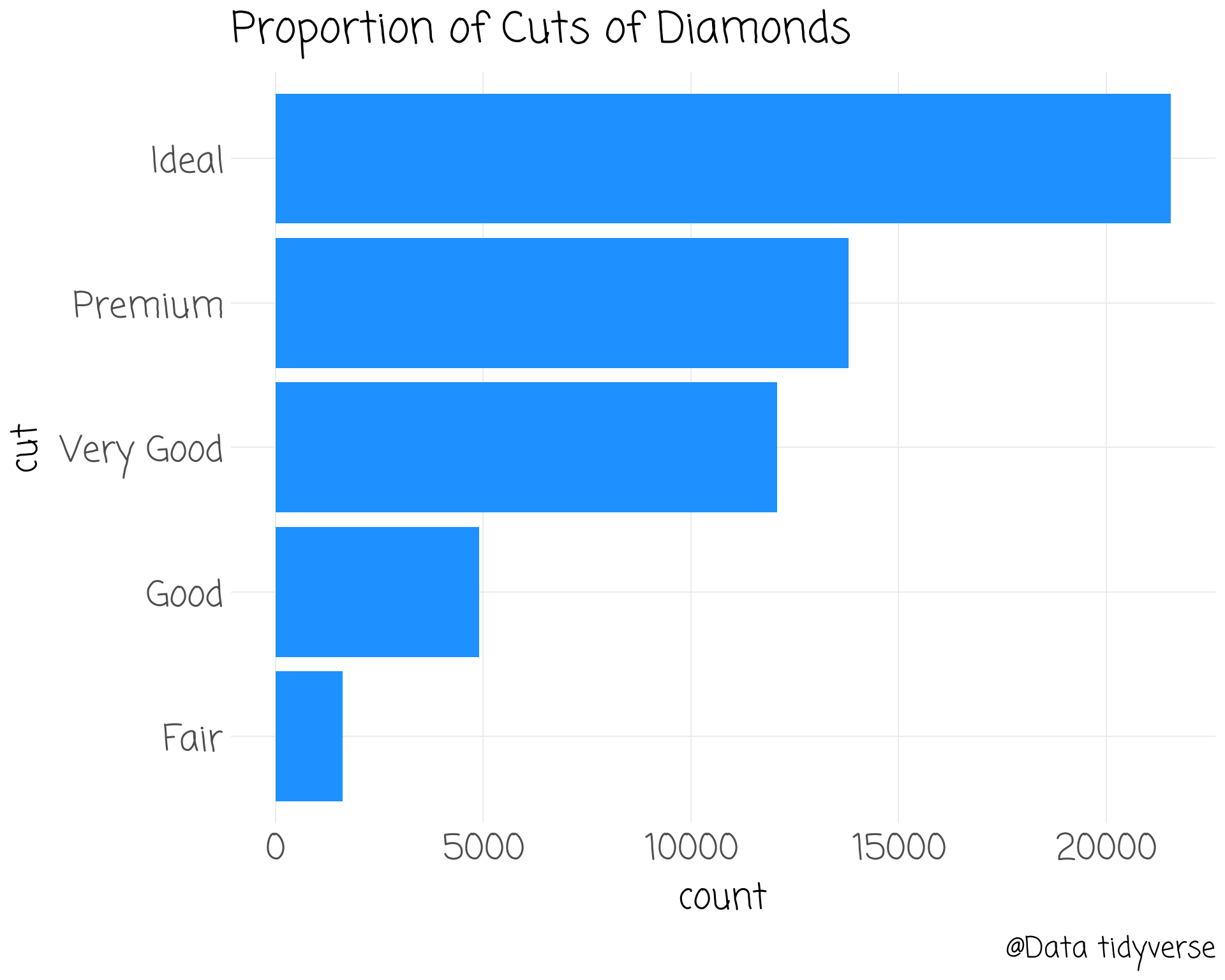

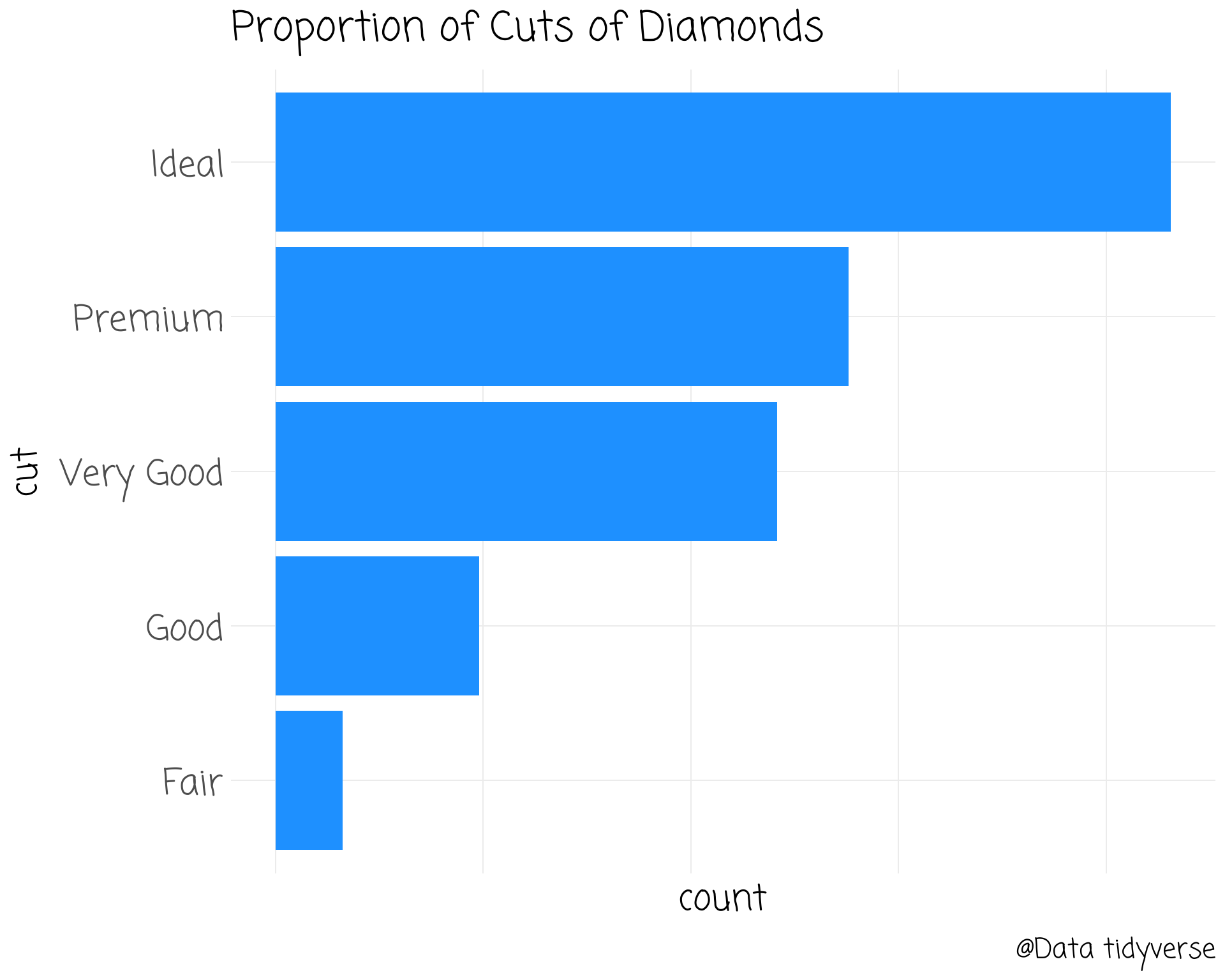

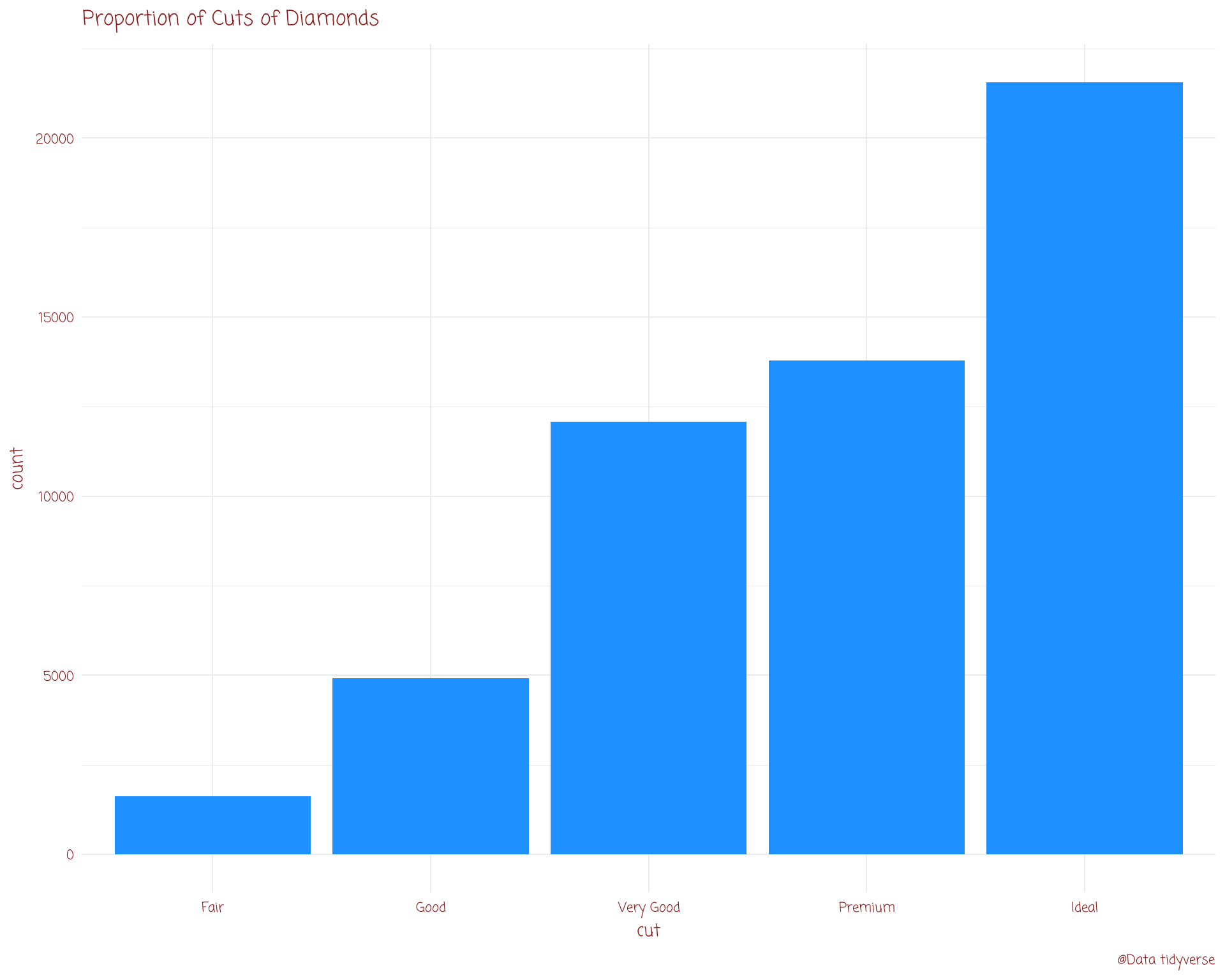

diamonds %>%
ggplot(aes(cut)) +
geom_bar(fill = "dodgerblue1") +
ggtitle("Proportion of Cuts of Diamonds") +
labs(caption = "@Data tidyverse") +
coord_flip() +
theme_clean() +
theme(text = element_text(size = 40)) +
theme(axis.text.x = element_blank()) +
theme(axis.title = element_blank()) +
theme(title = element_text(face = "bold"))

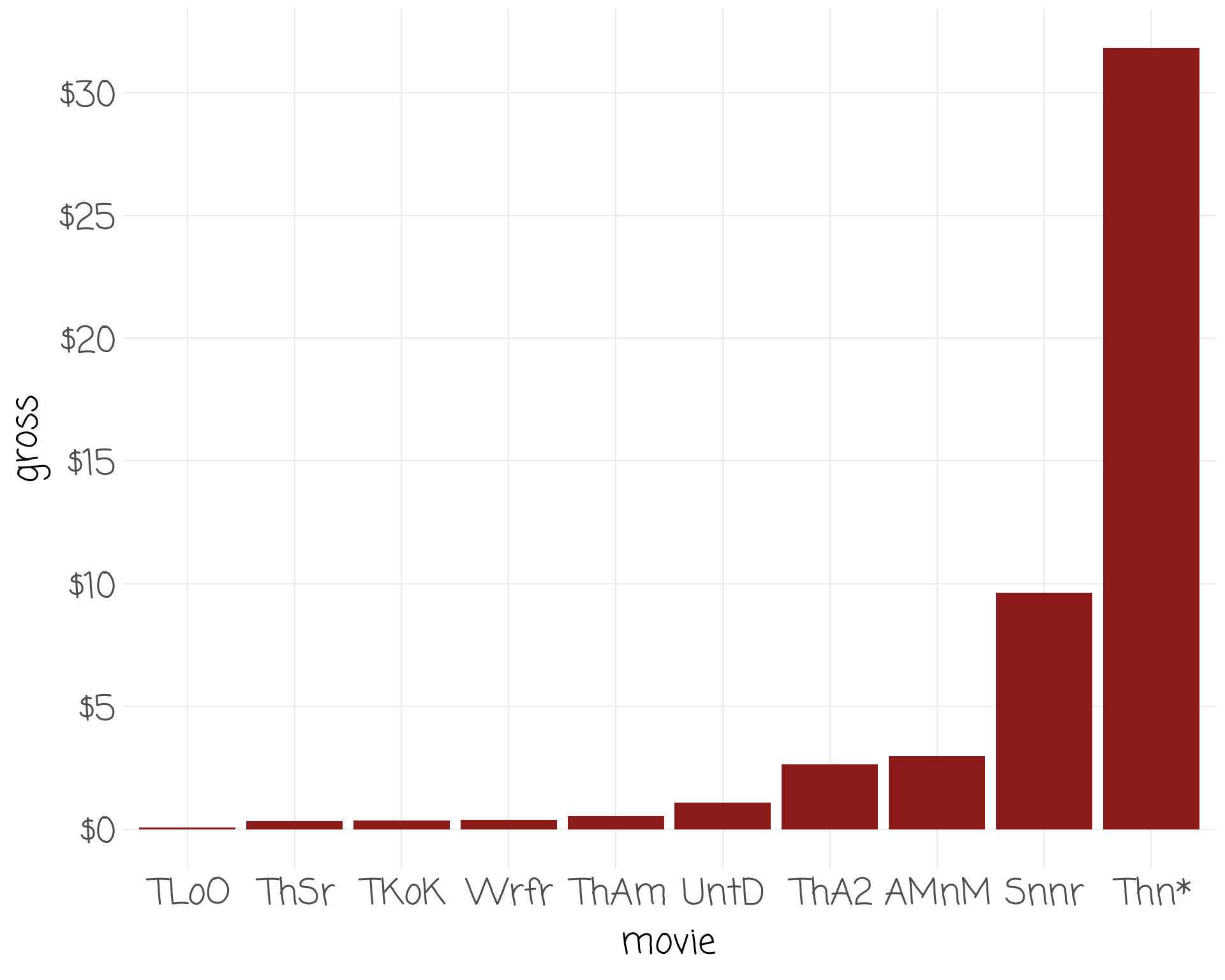

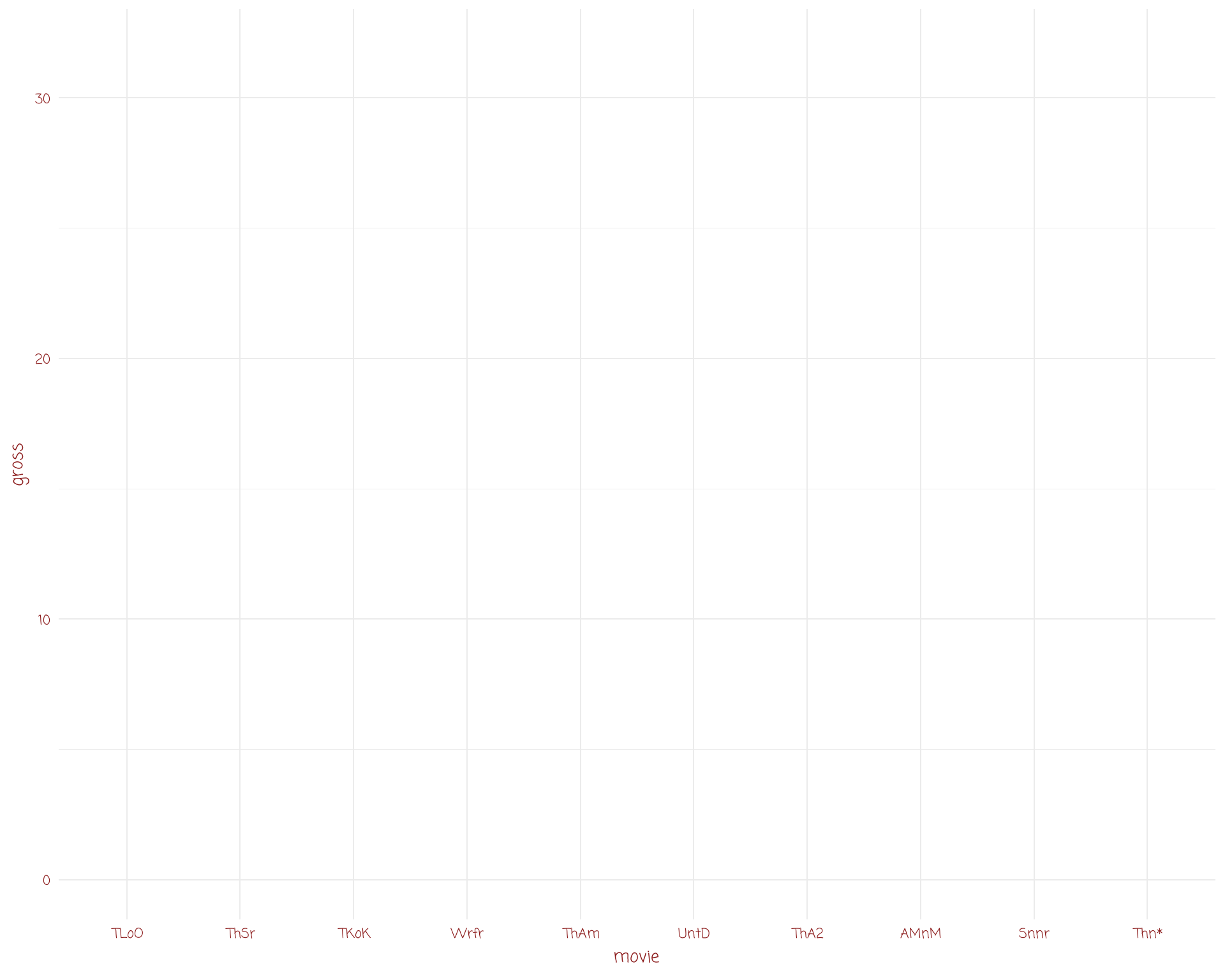

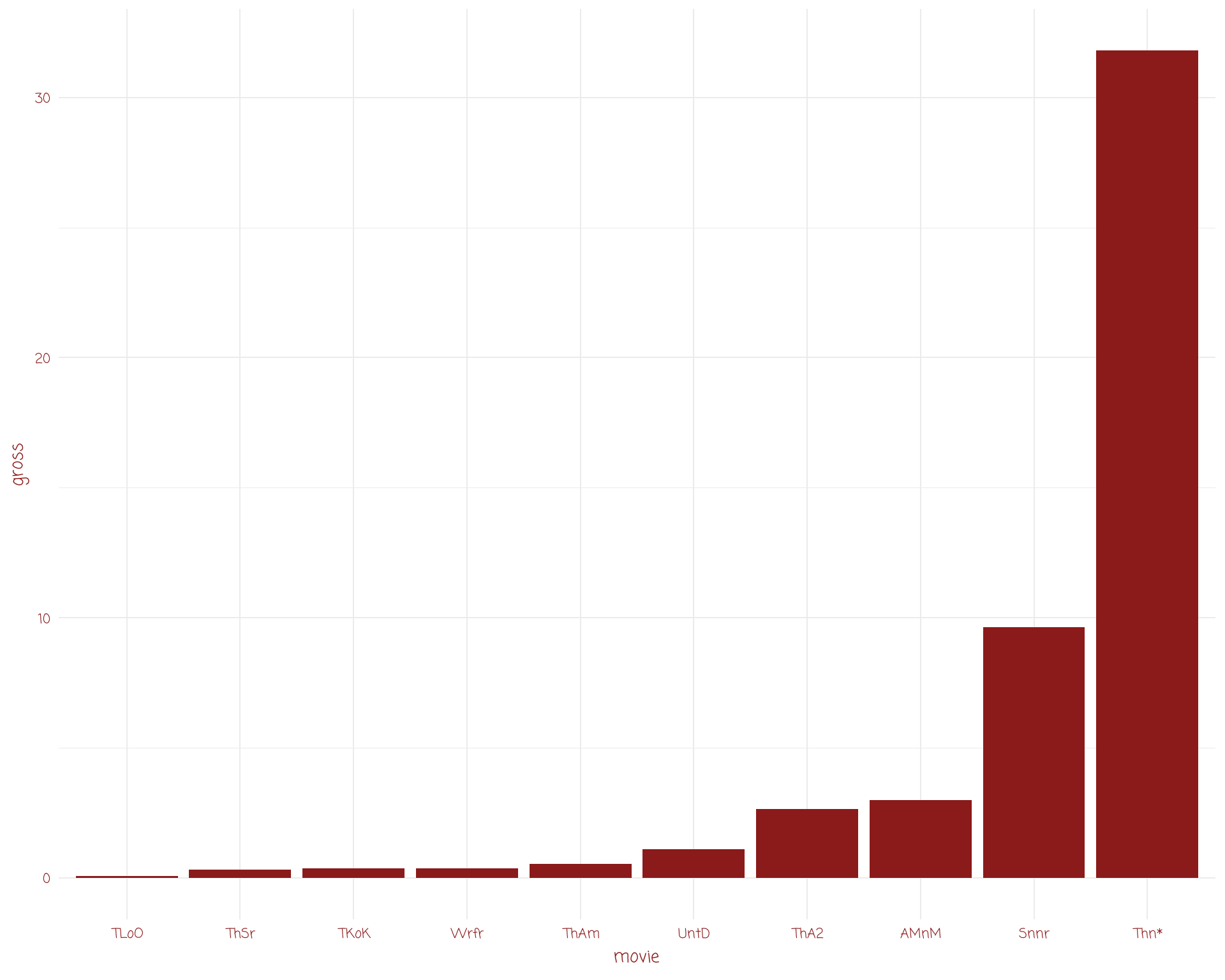

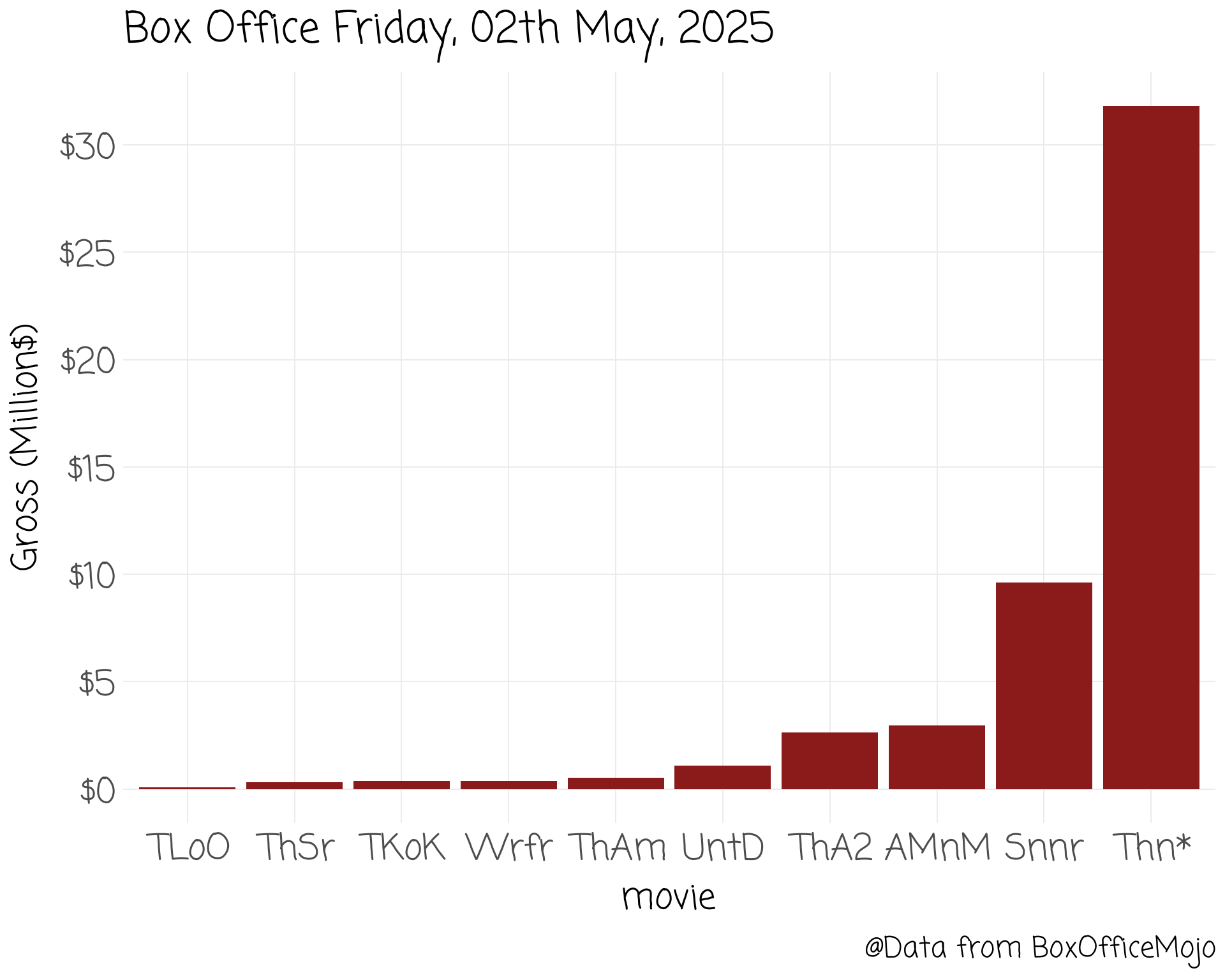

Movie Barplot
Movie Barplot
Movie Barplot
Movie Barplot
Movie Barplot

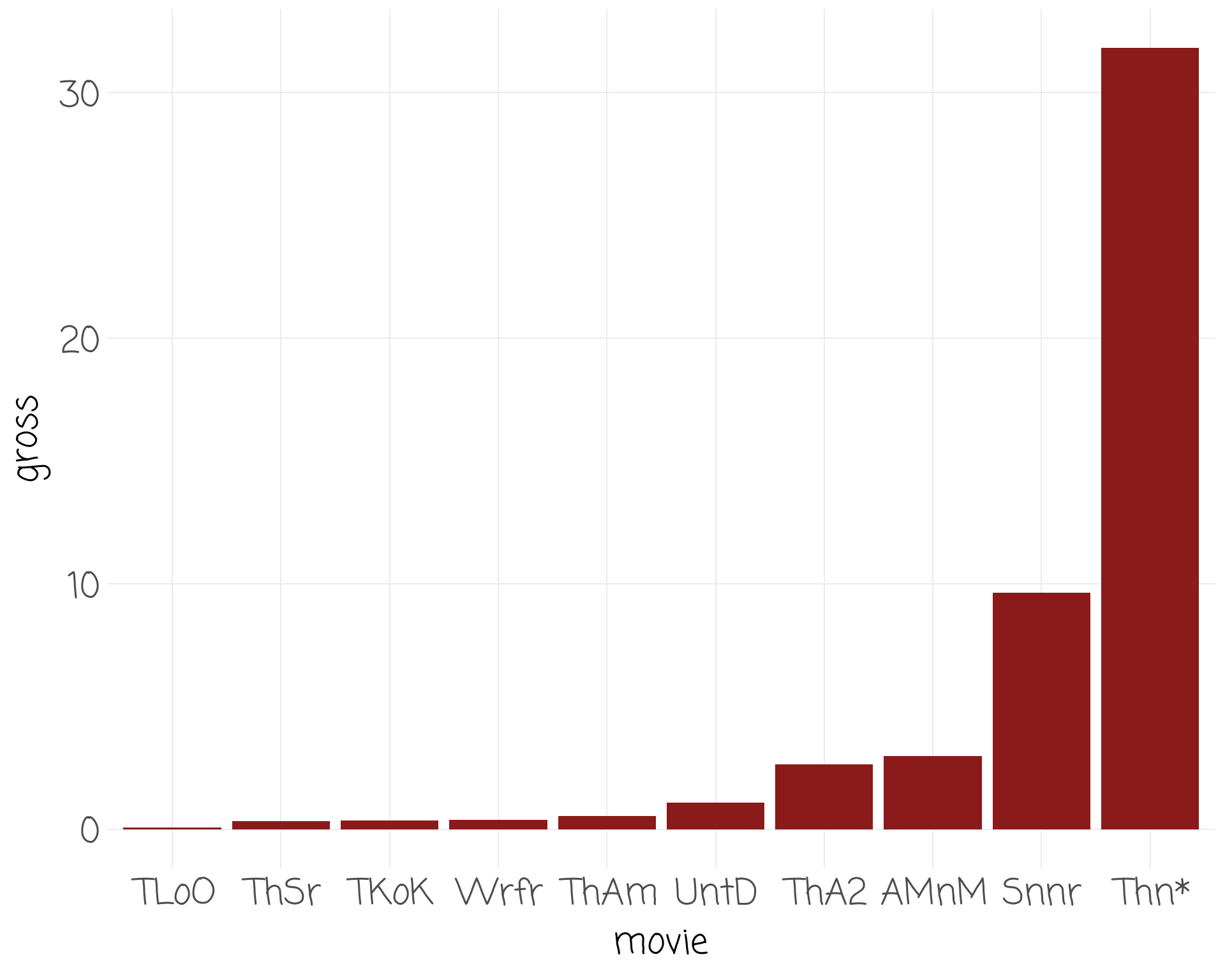

movies %>% mutate(movie = fct_reorder(movie, gross)) %>%
slice_head(n=10) %>%
ggplot(aes(movie, gross)) +
geom_col(fill = "firebrick4") +
theme_clean() +
scale_y_continuous(breaks = scales::breaks_extended(8),
labels = scales::label_dollar(scale = 1)) +
labs(title = glue::glue("Box Office {boxoffice_date_string}"),
caption = "@Data from BoxOfficeMojo",
y = "Gross (Million$)")

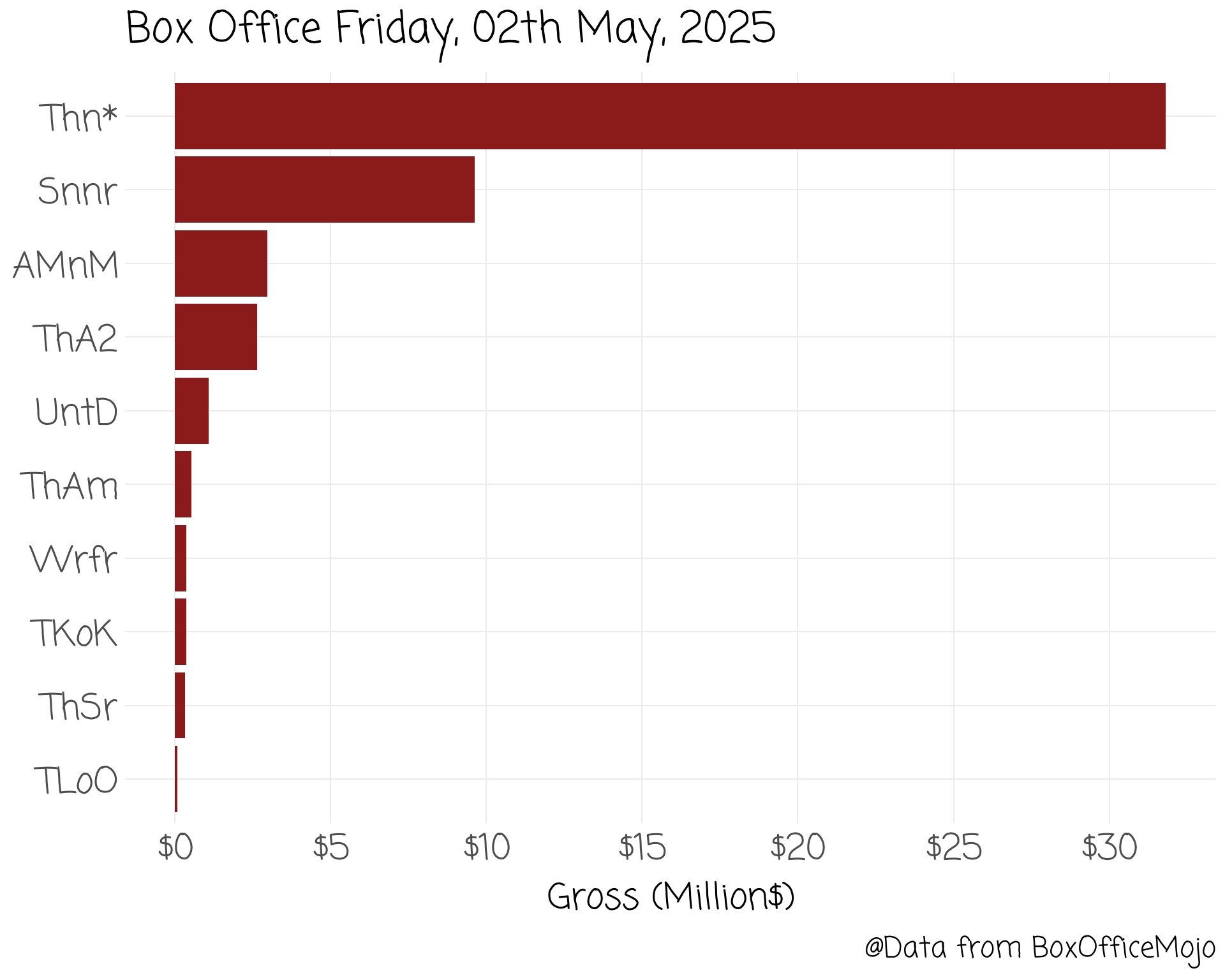

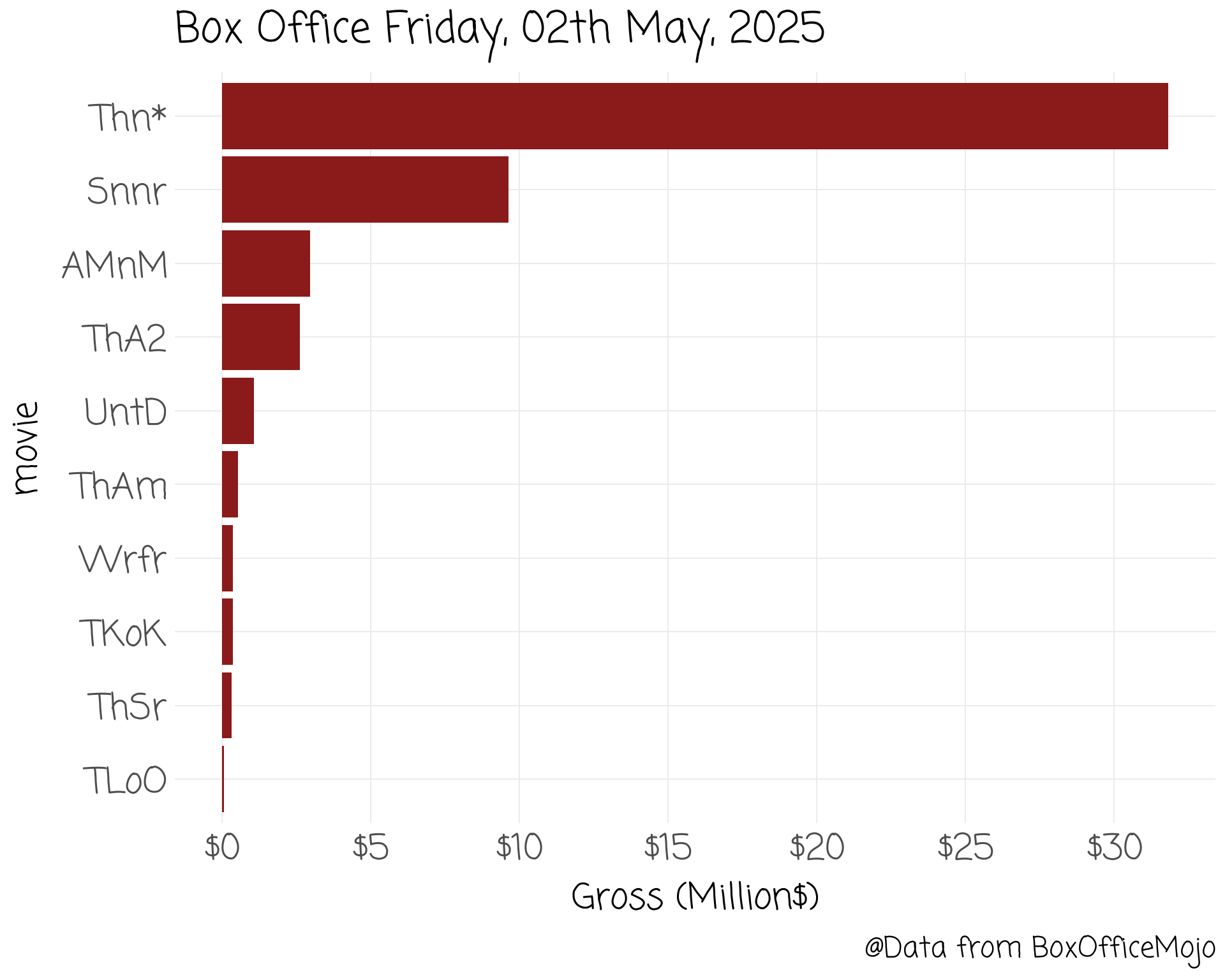

Movie Barplot
movies %>% mutate(movie = fct_reorder(movie, gross)) %>%
slice_head(n=10) %>%
ggplot(aes(movie, gross)) +
geom_col(fill = "firebrick4") +
theme_clean() +
scale_y_continuous(breaks = scales::breaks_extended(8),
labels = scales::label_dollar(scale = 1)) +
labs(title = glue::glue("Box Office {boxoffice_date_string}"),
caption = "@Data from BoxOfficeMojo",
y = "Gross (Million$)") +
coord_flip()
Movie Barplot
movies %>% mutate(movie = fct_reorder(movie, gross)) %>%
slice_head(n=10) %>%
ggplot(aes(movie, gross)) +
geom_col(fill = "firebrick4") +
theme_clean() +
scale_y_continuous(breaks = scales::breaks_extended(8),
labels = scales::label_dollar(scale = 1)) +
labs(title = glue::glue("Box Office {boxoffice_date_string}"),
caption = "@Data from BoxOfficeMojo",
y = "Gross (Million$)") +
coord_flip() +
theme(axis.title.y = element_blank())

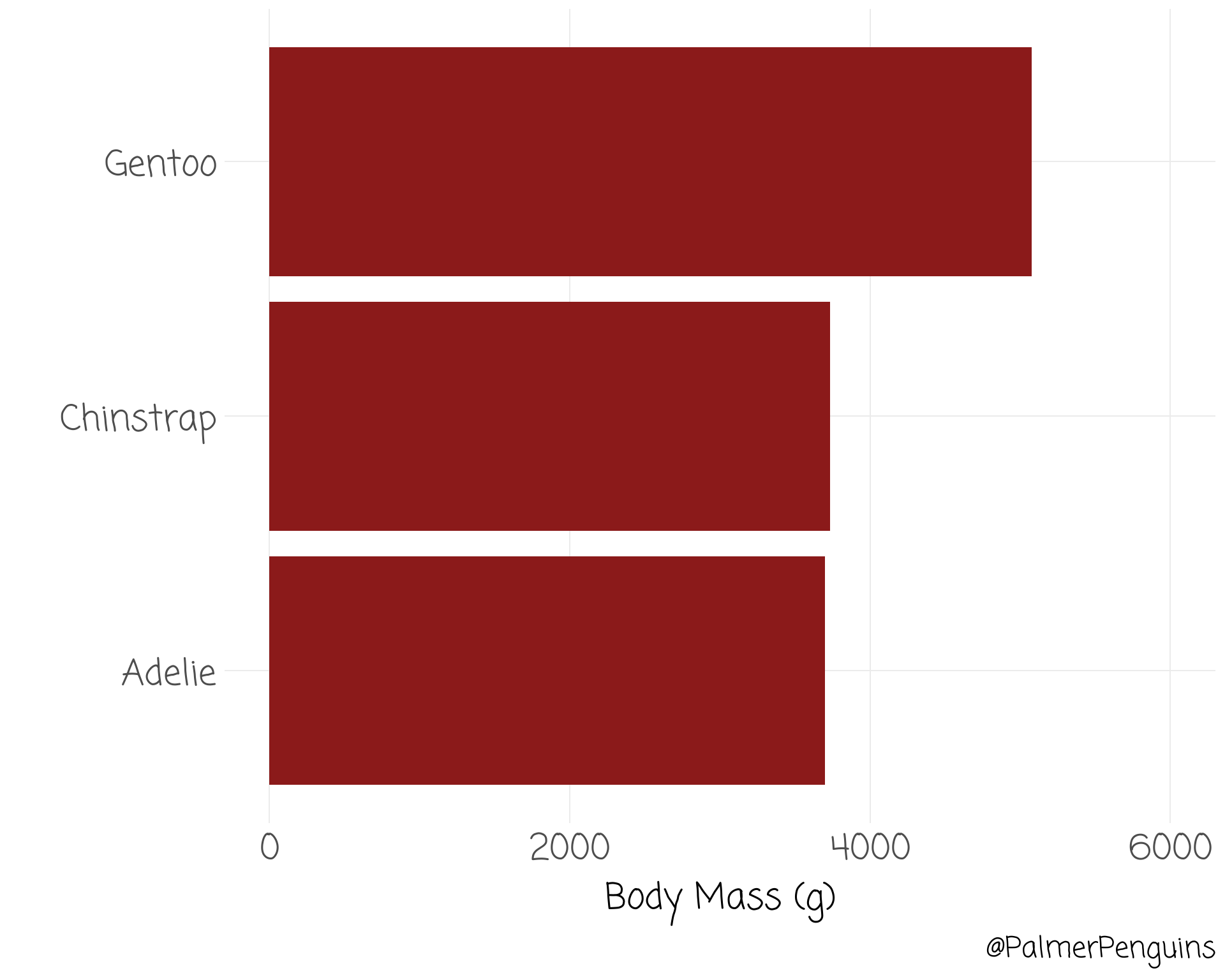

Column Plot
penguins %>%
group_by(species) %>%
summarise(body_mass = mean(body_mass, na.rm = T)) %>%
ggplot(aes(species, body_mass, xend = species, yend = body_mass)) +
theme_clean() +
coord_flip() +
labs(caption = "@PalmerPenguins",
y = "Body Mass (g)",
x = "") +
ylim(c(0, 6000)) +
geom_col(fill = "firebrick4") +
labs(x = "")

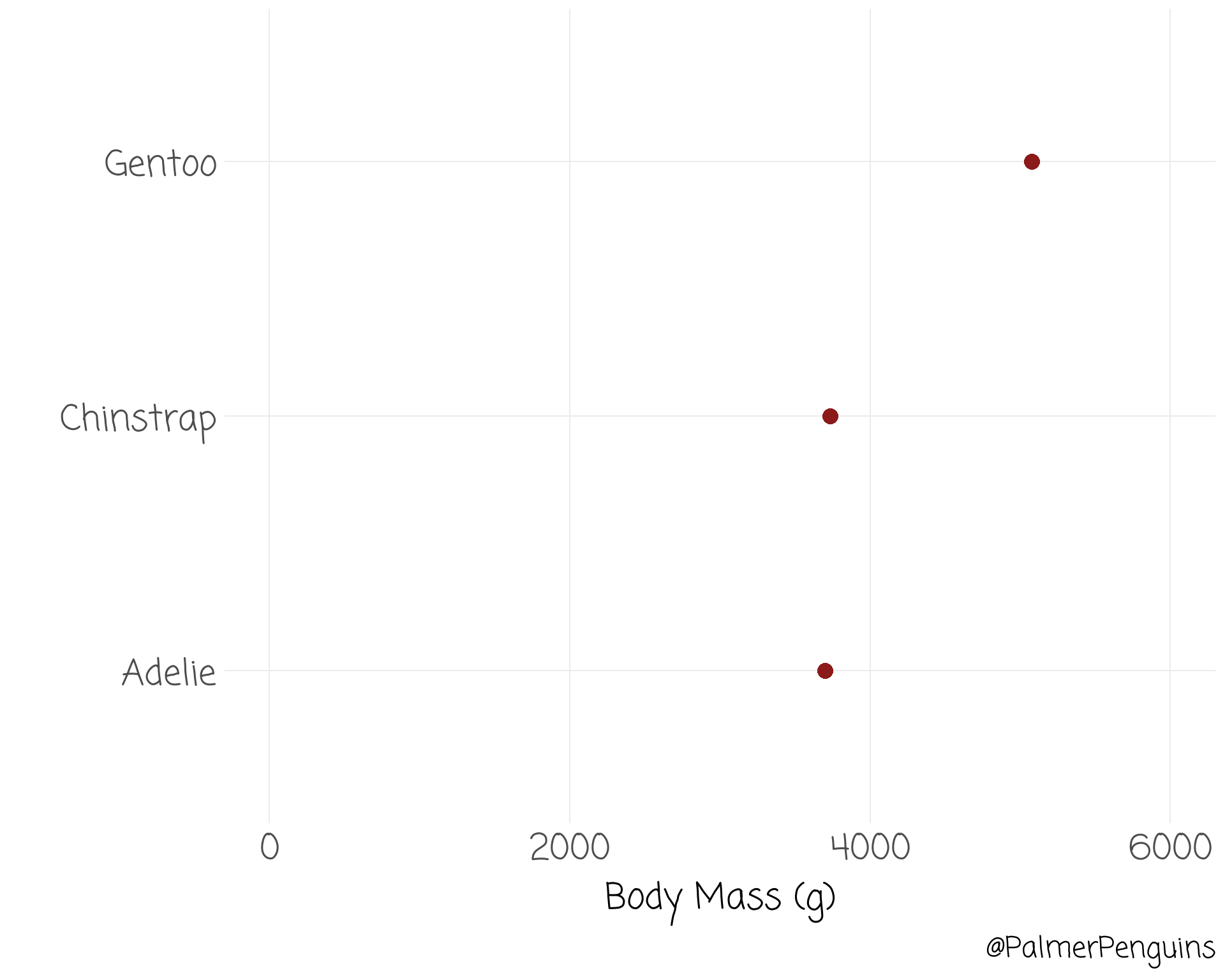

Column Plot
penguins %>%
group_by(species) %>%
summarise(body_mass = mean(body_mass, na.rm = T)) %>%
ggplot(aes(species, body_mass, xend = species, yend = body_mass)) +
theme_clean() +
coord_flip() +
labs(caption = "@PalmerPenguins",
y = "Body Mass (g)",
x = "") +
ylim(c(0, 6000)) +
geom_point(colour = "firebrick4", size = 4) +
labs(x = "")

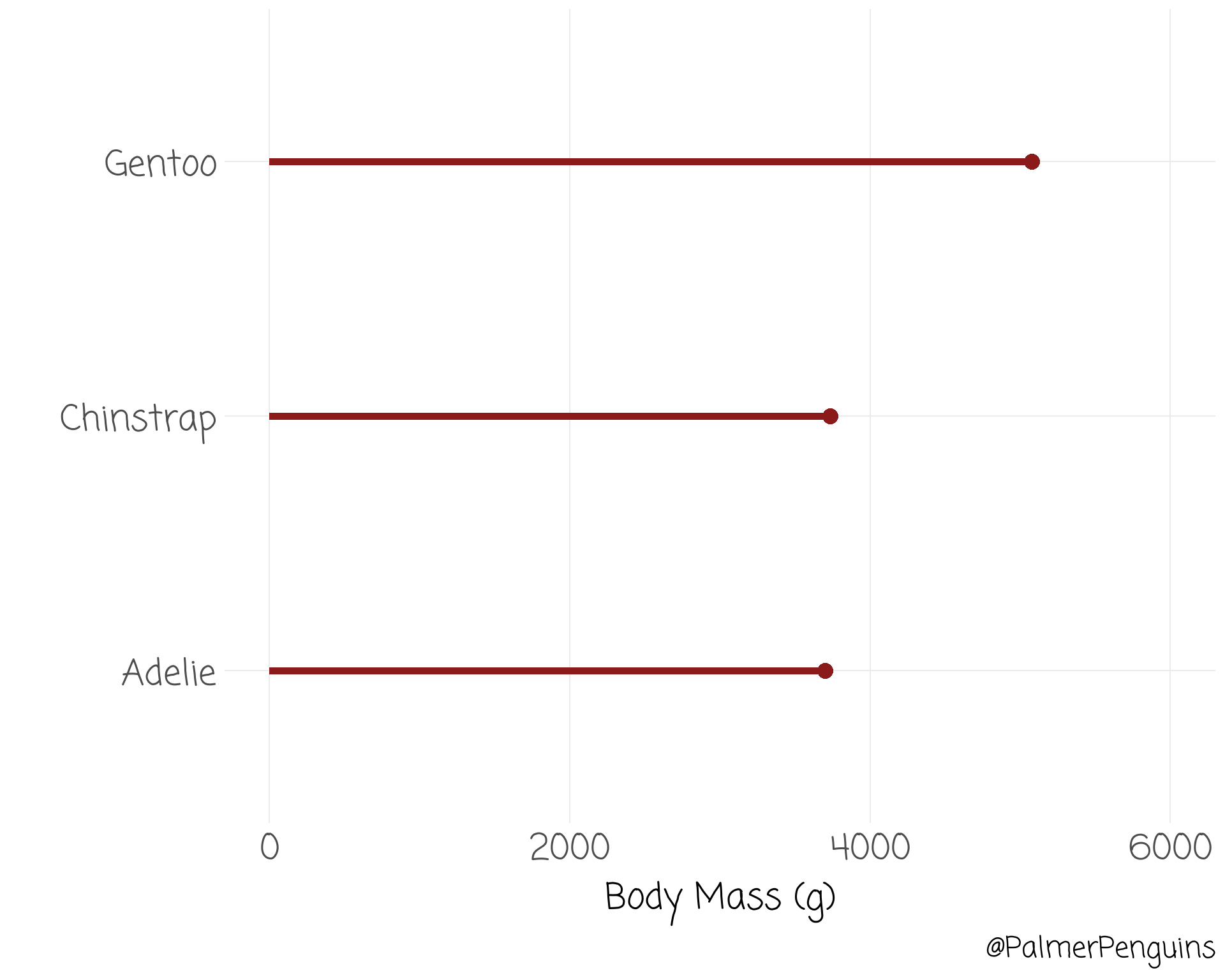

Column Plot
penguins %>%
group_by(species) %>%
summarise(body_mass = mean(body_mass, na.rm = T)) %>%
ggplot(aes(species, body_mass, xend = species, yend = body_mass)) +
theme_clean() +
coord_flip() +
labs(caption = "@PalmerPenguins",
y = "Body Mass (g)",
x = "") +
ylim(c(0, 6000)) +
geom_segment(linewidth = 2, colour = "firebrick4", y = 0) + geom_point(colour = "firebrick4", size = 4) +
labs(x = "")

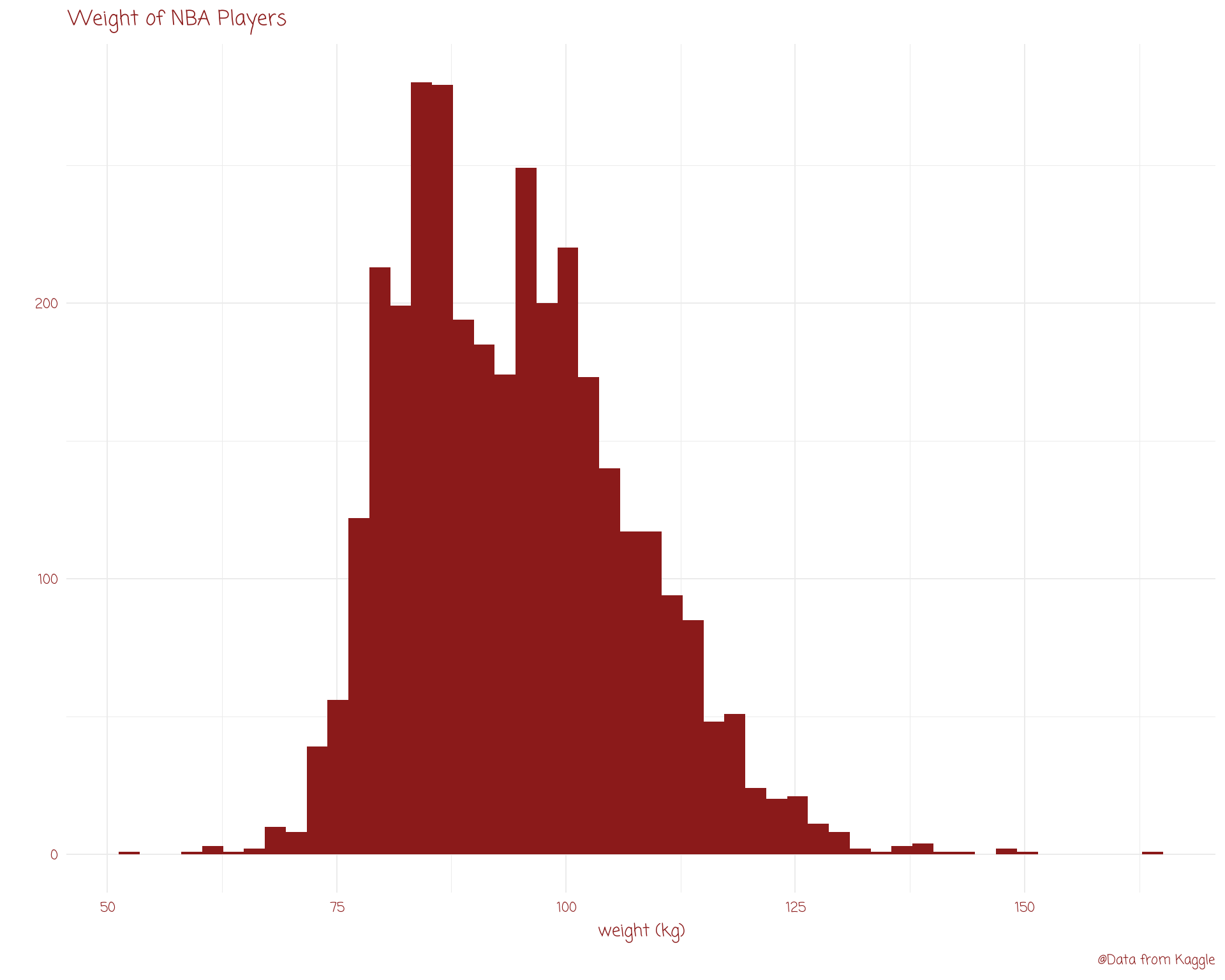

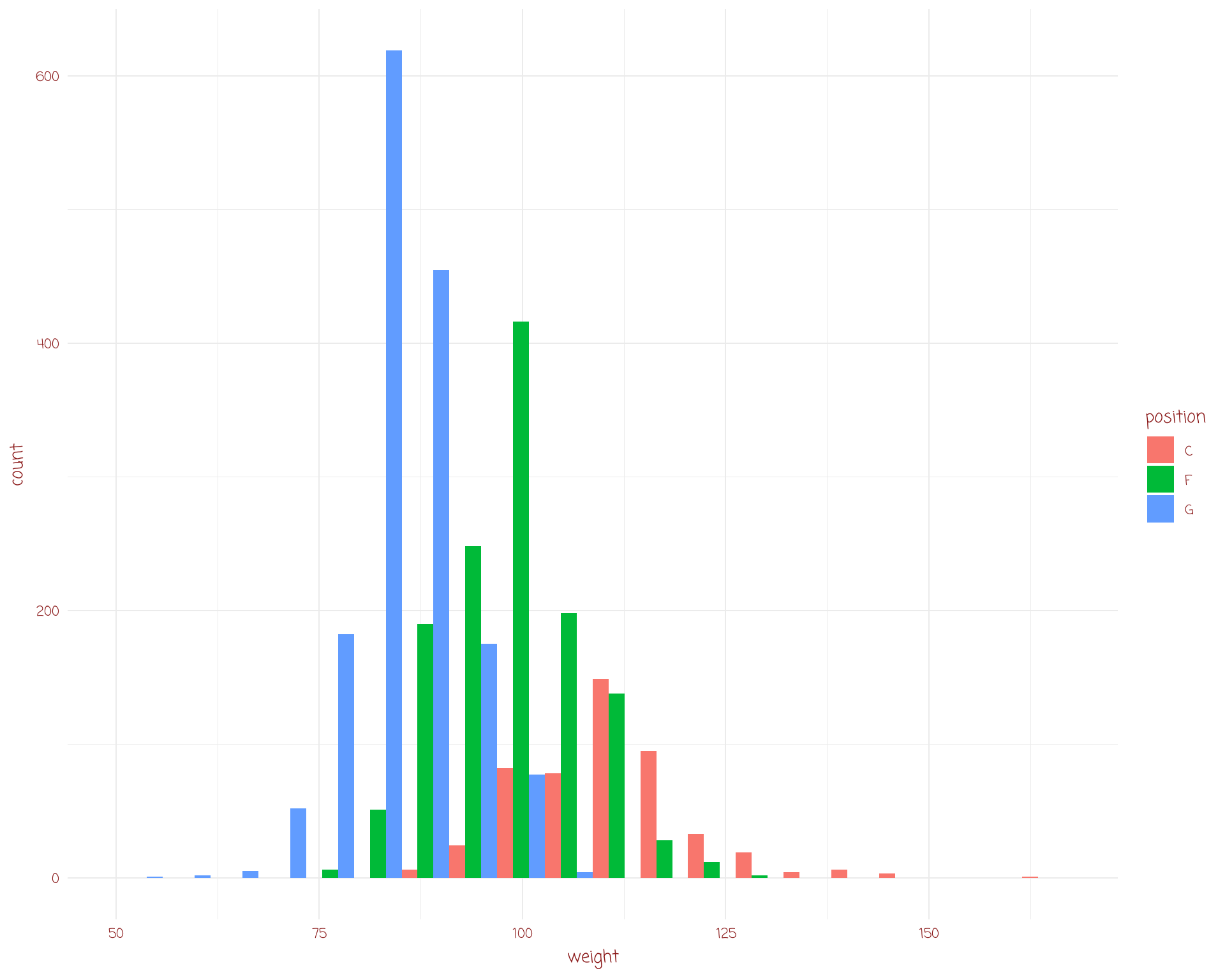

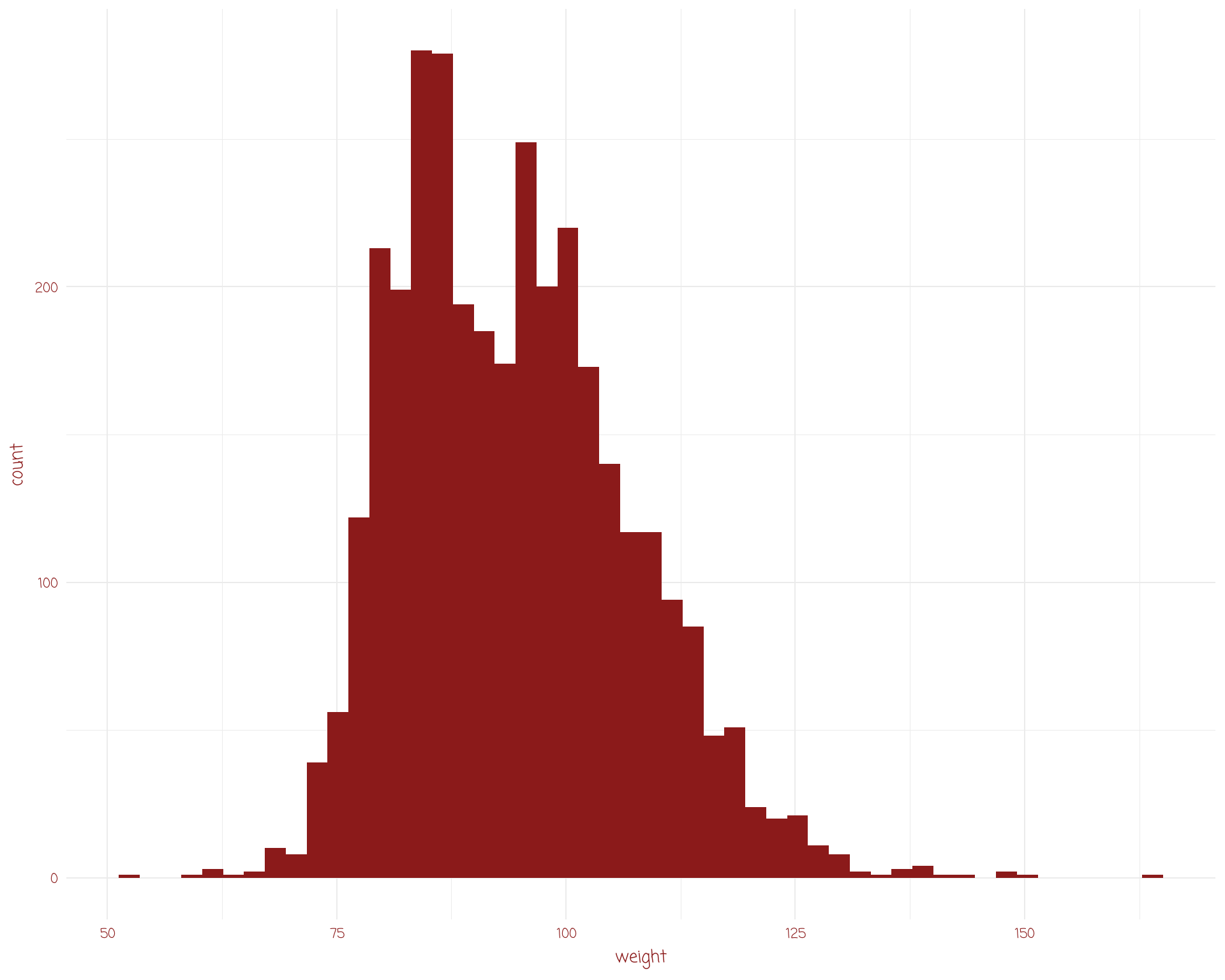

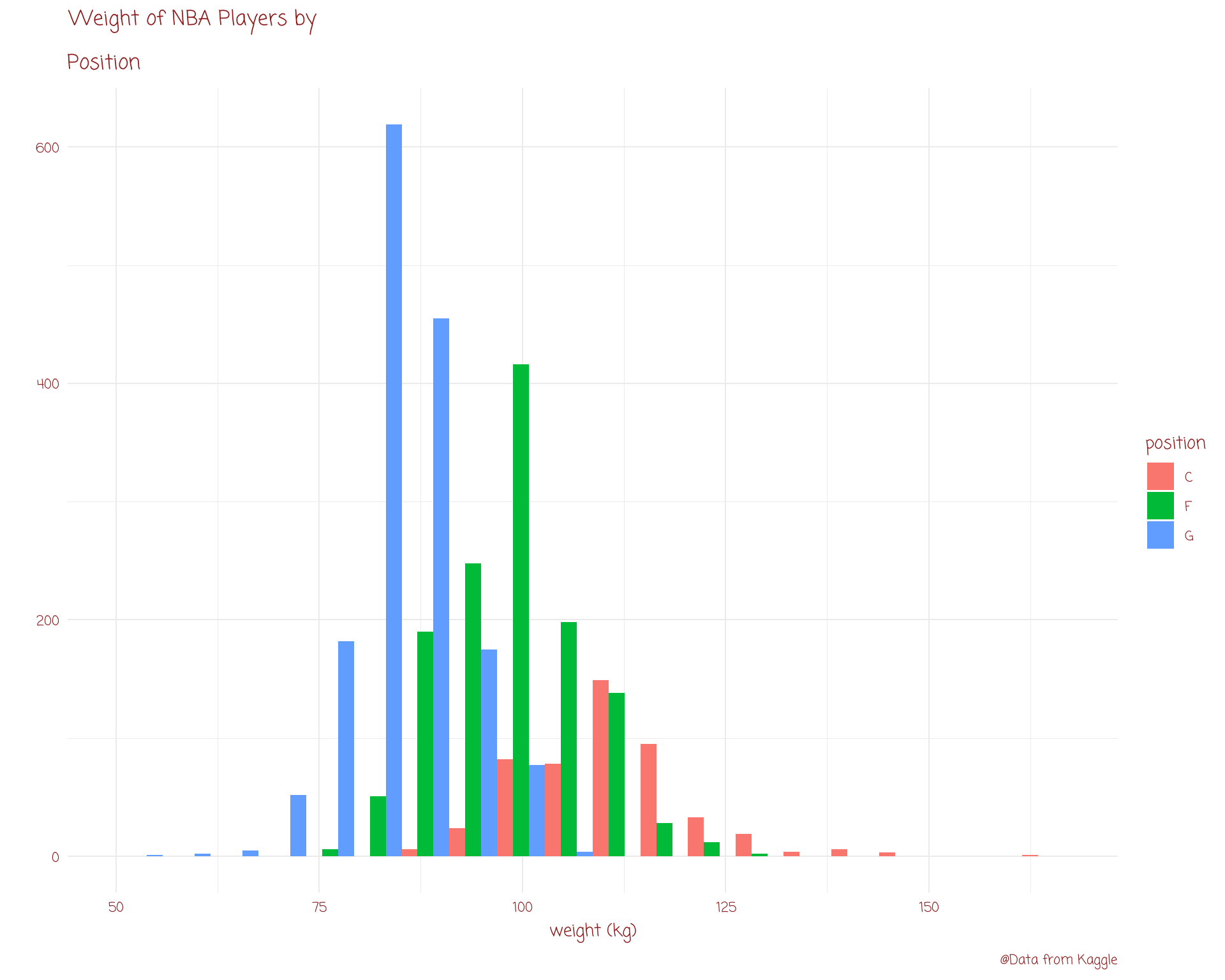

Histogram
Histogram
Histogram
Histogram
Histogram
Histogram

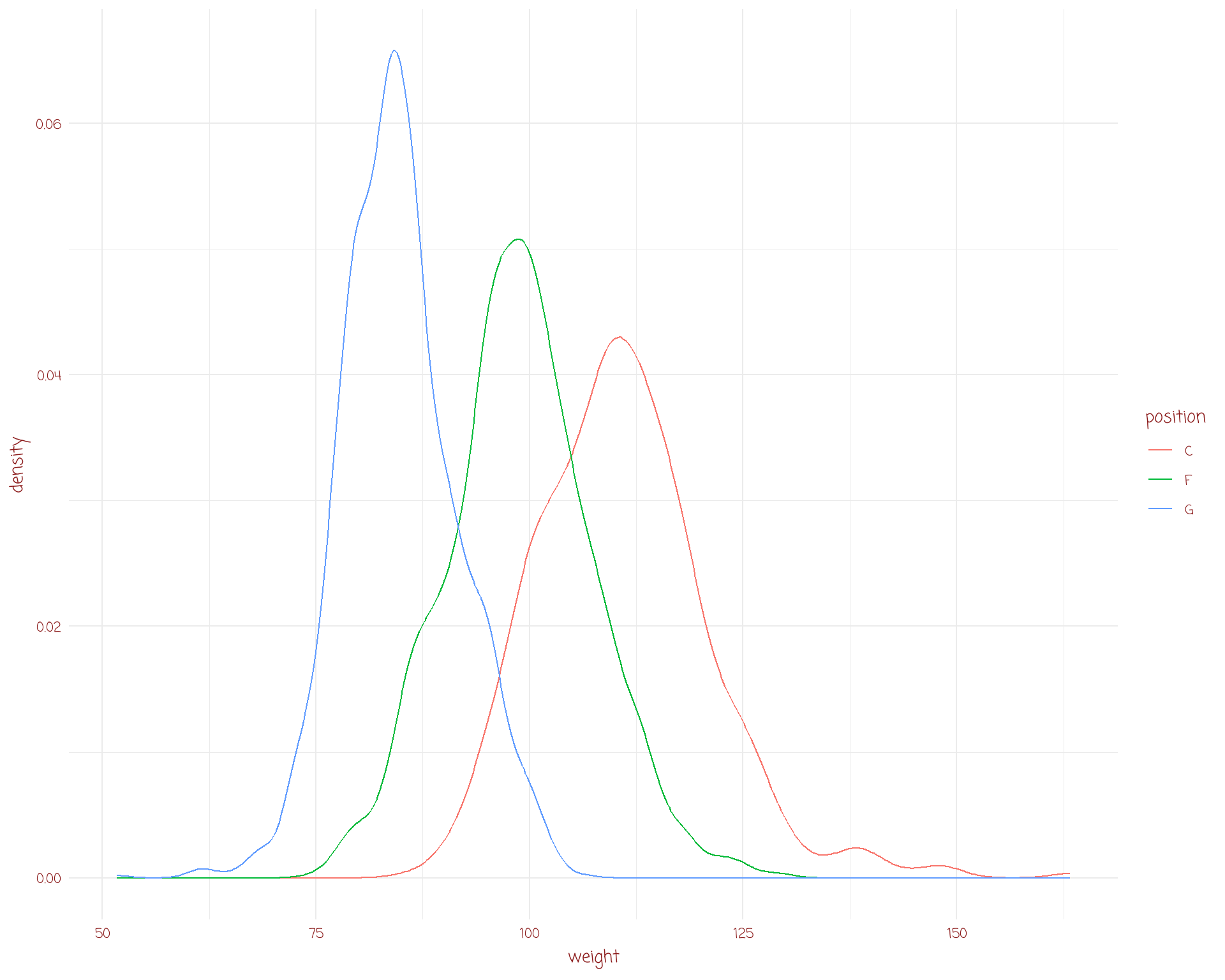

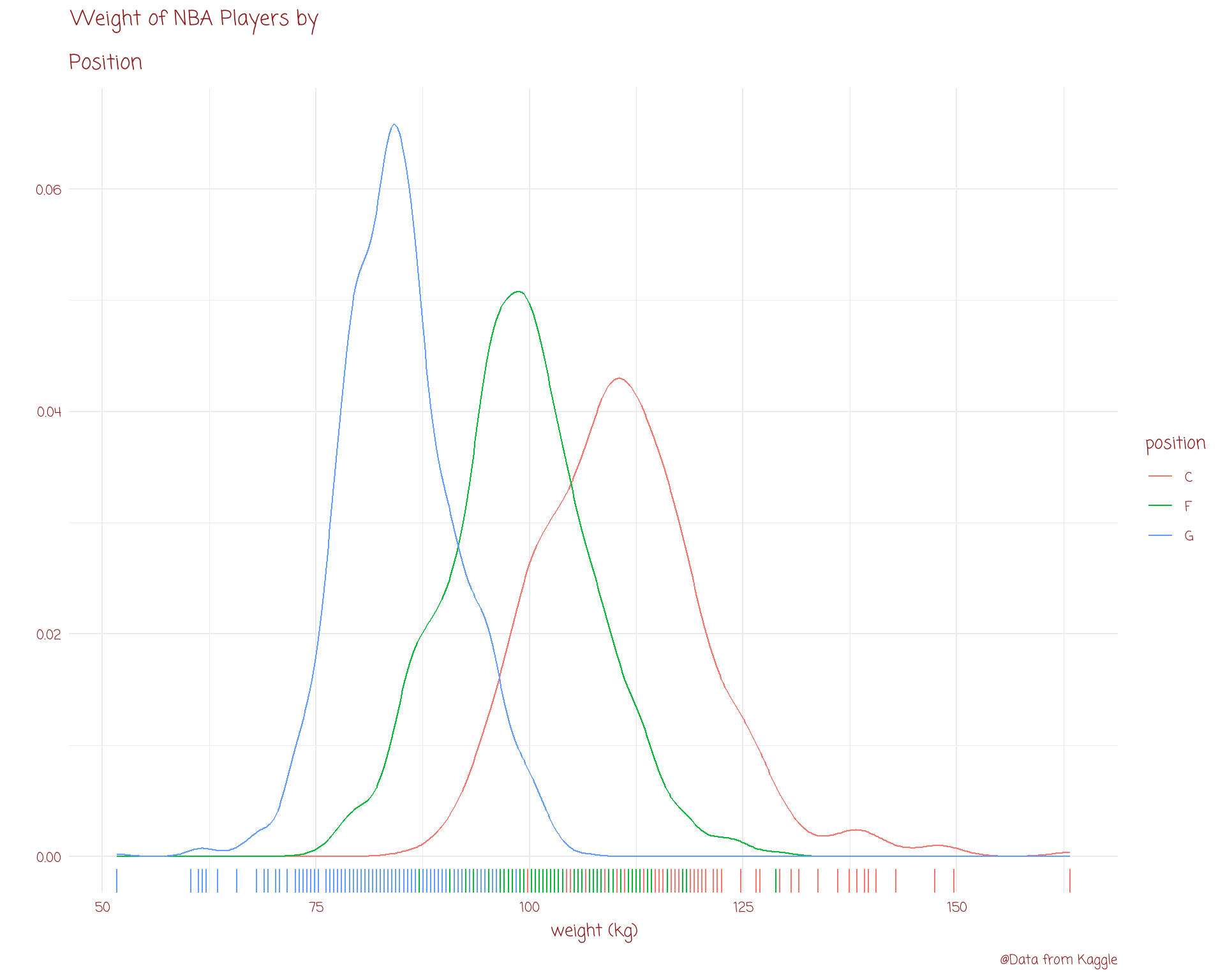

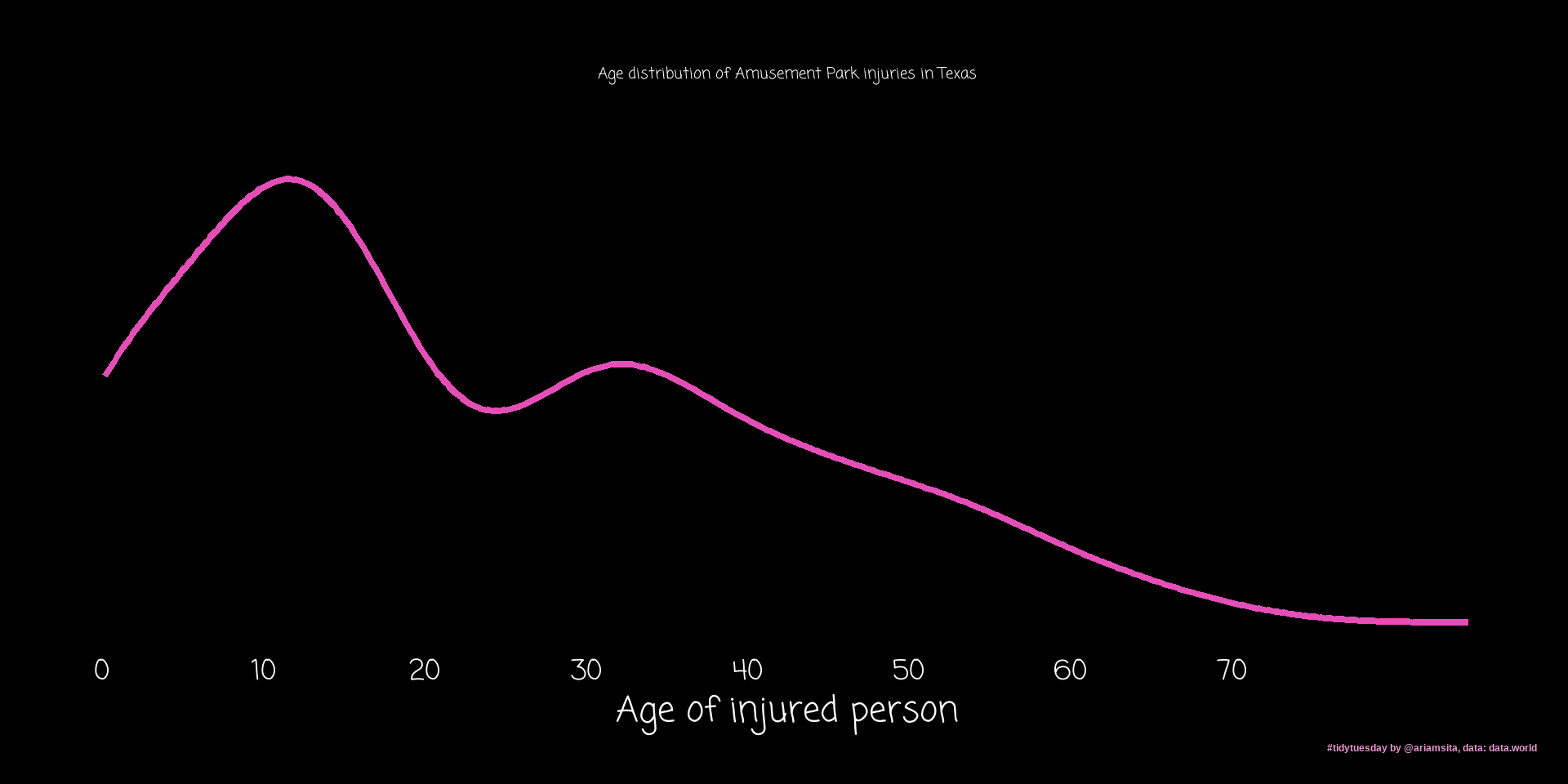

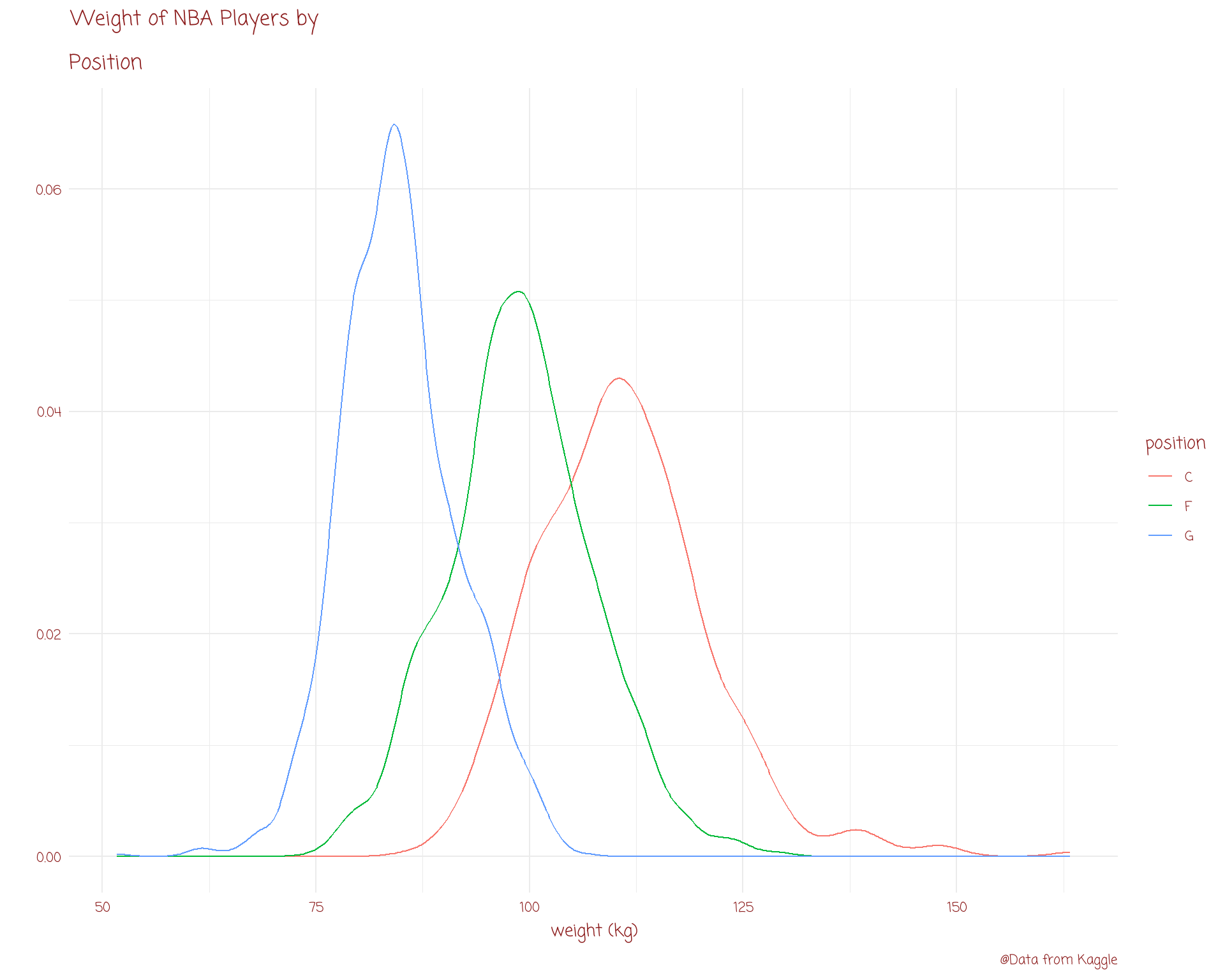

Density Plot
Density Plot
Density Plot
Density Plot

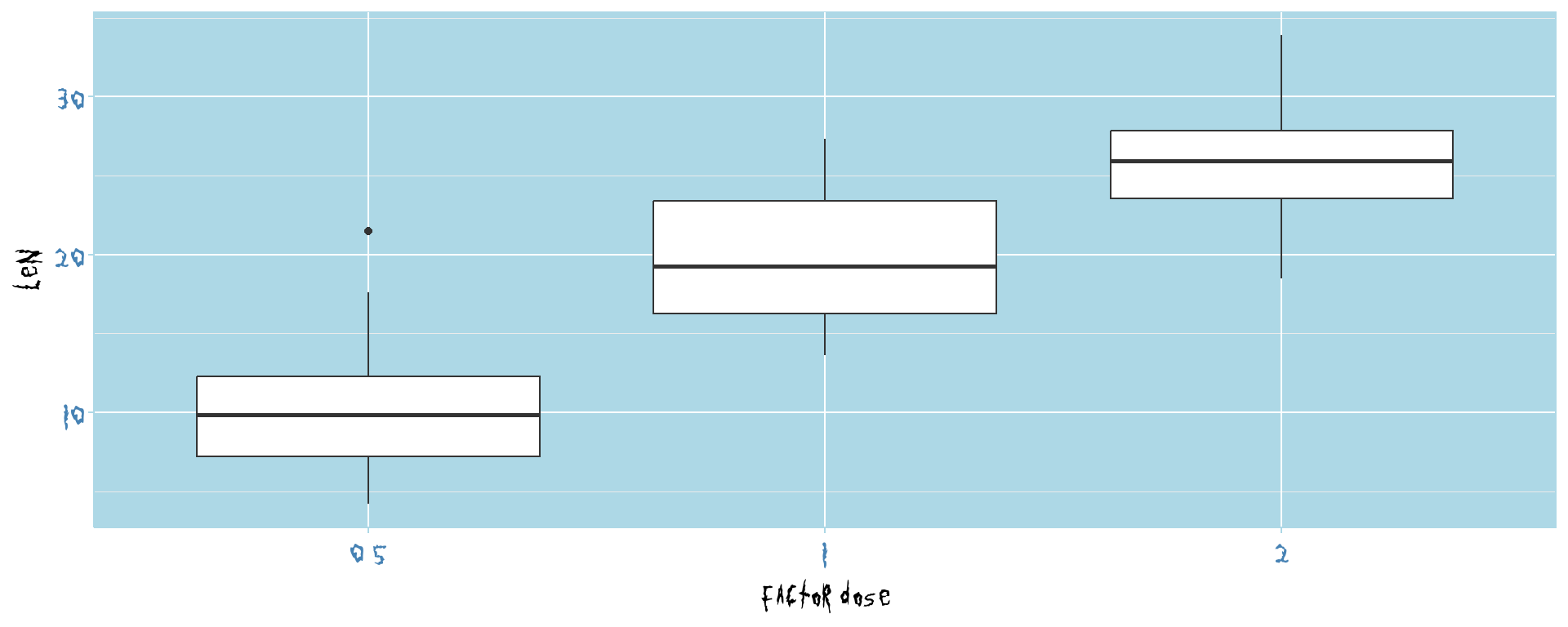

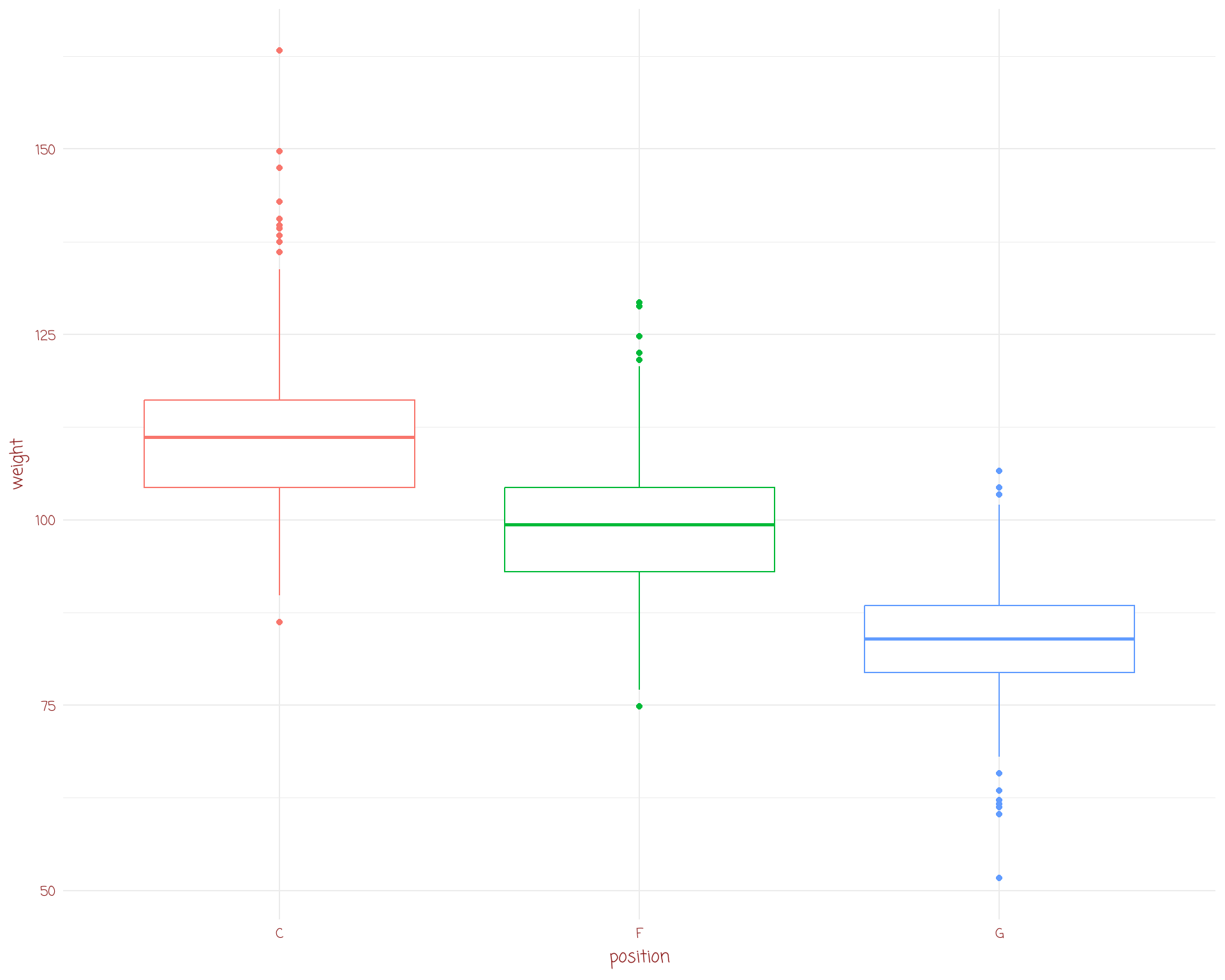

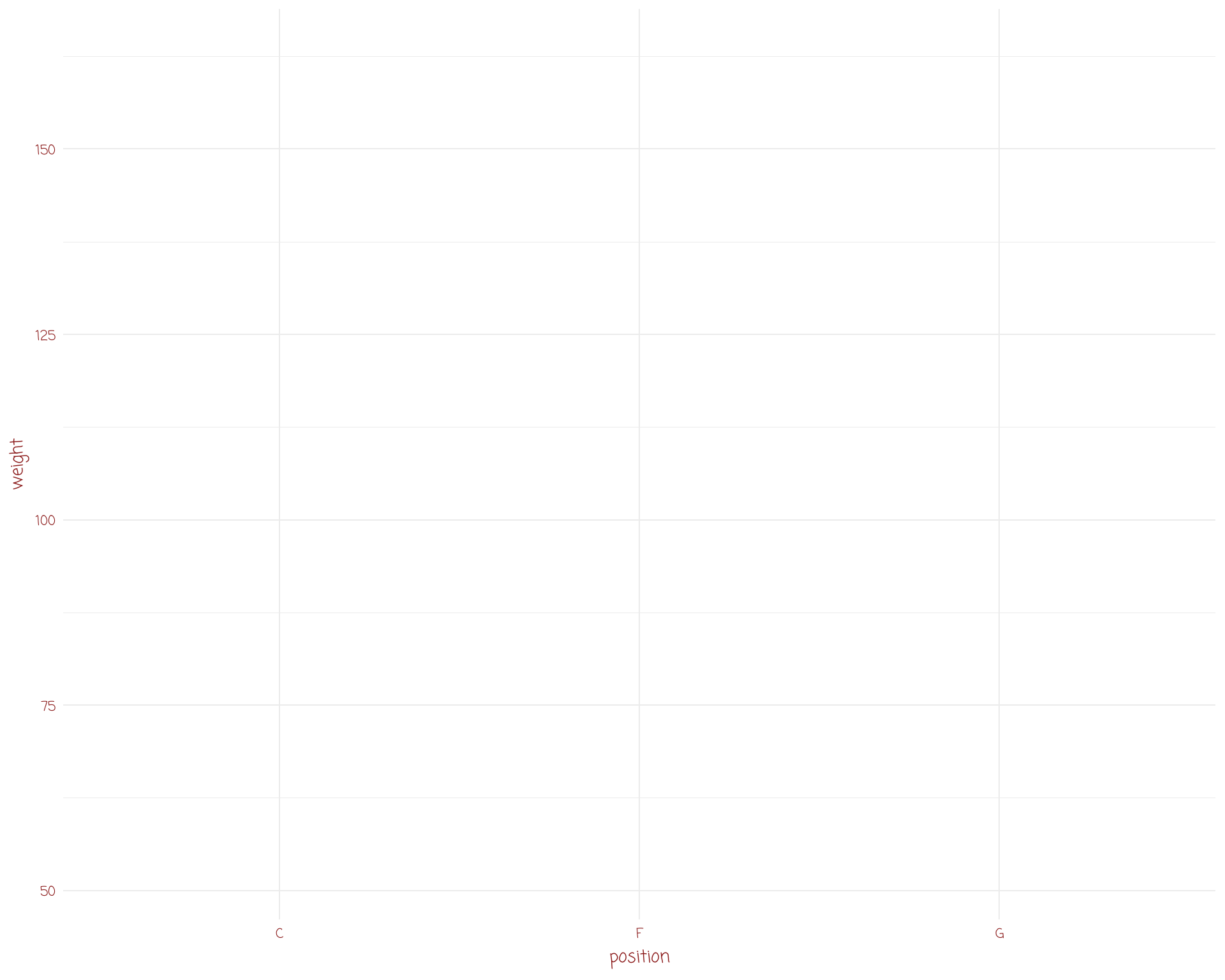

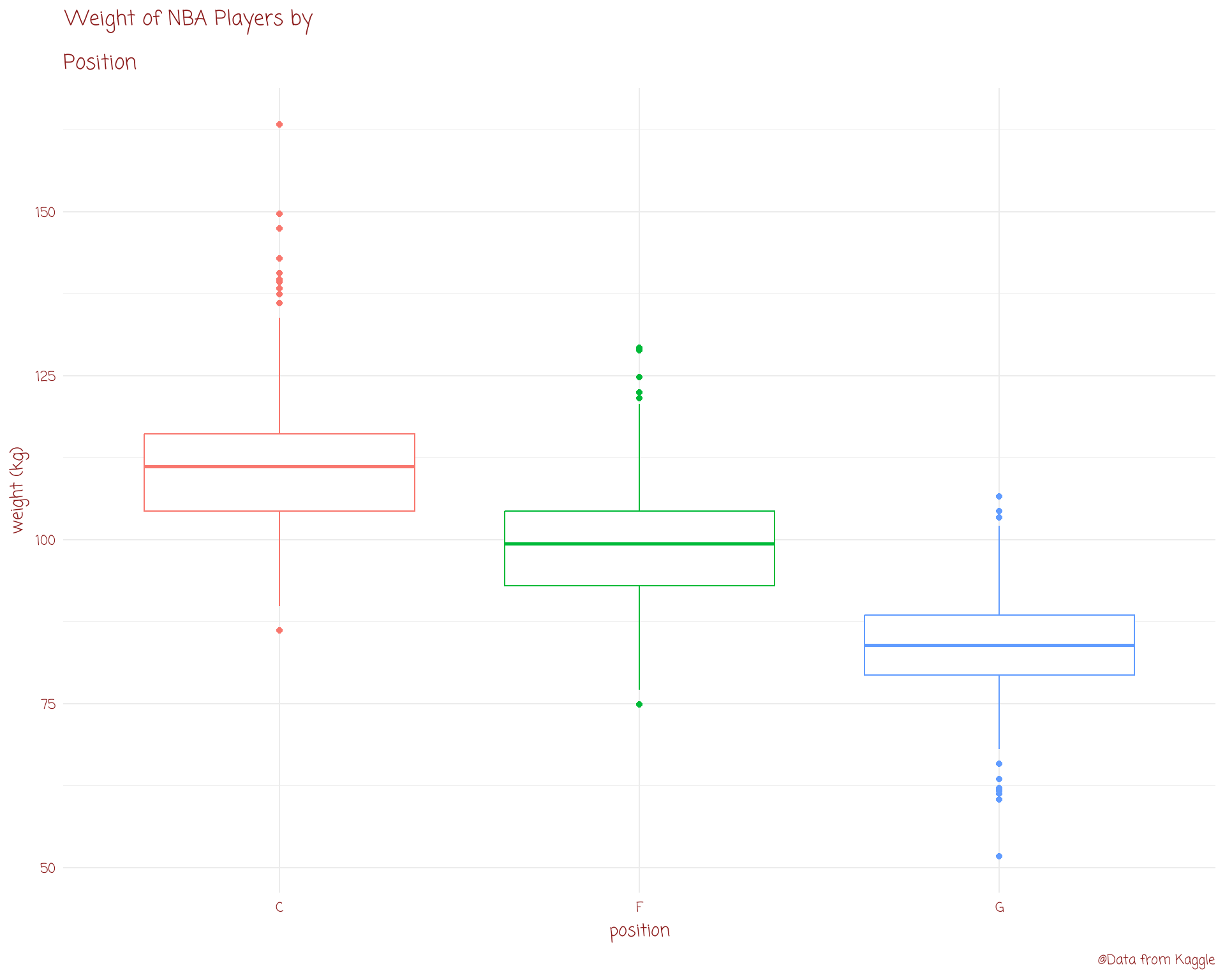

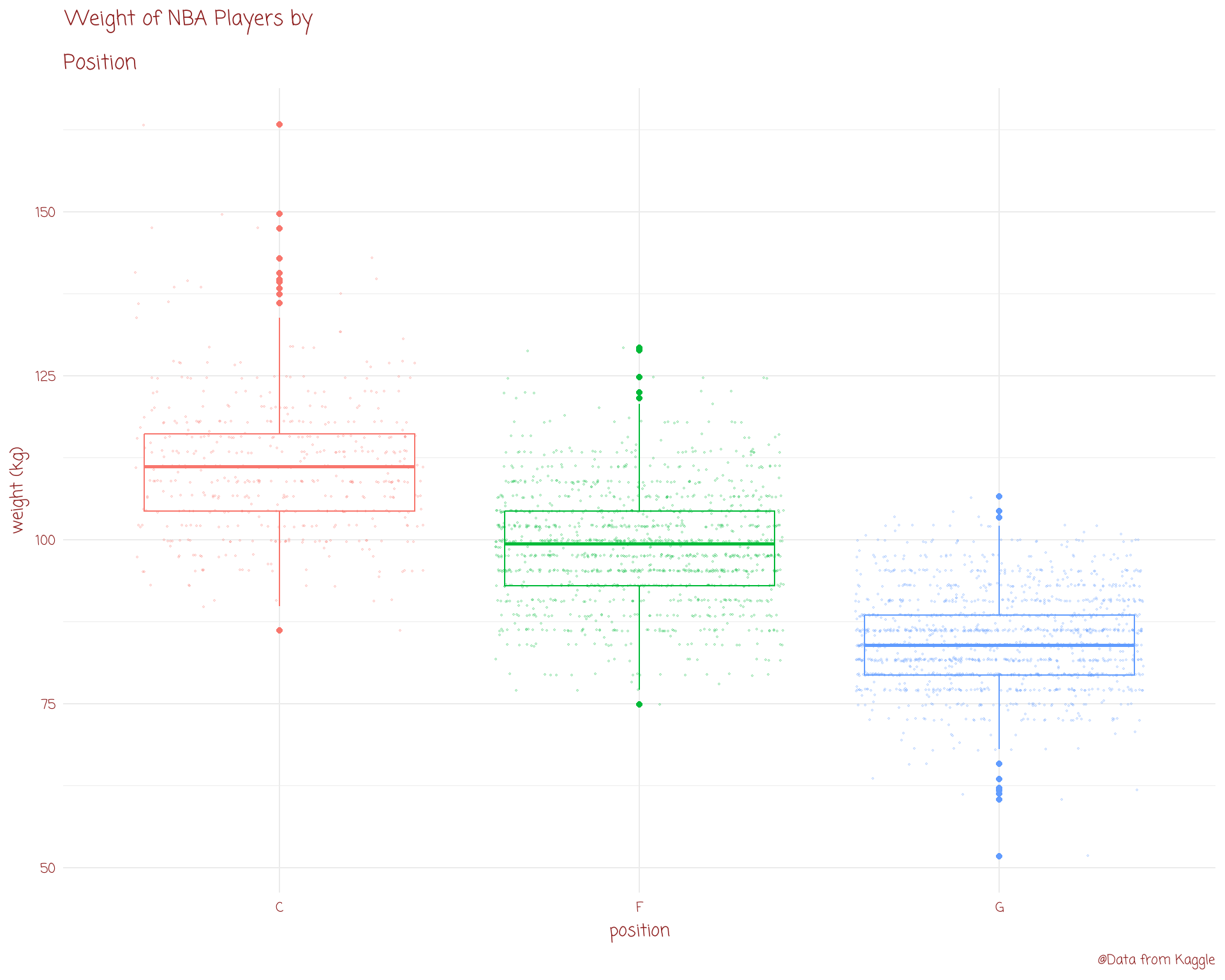

Boxplot
Boxplot
Boxplot
Boxplot

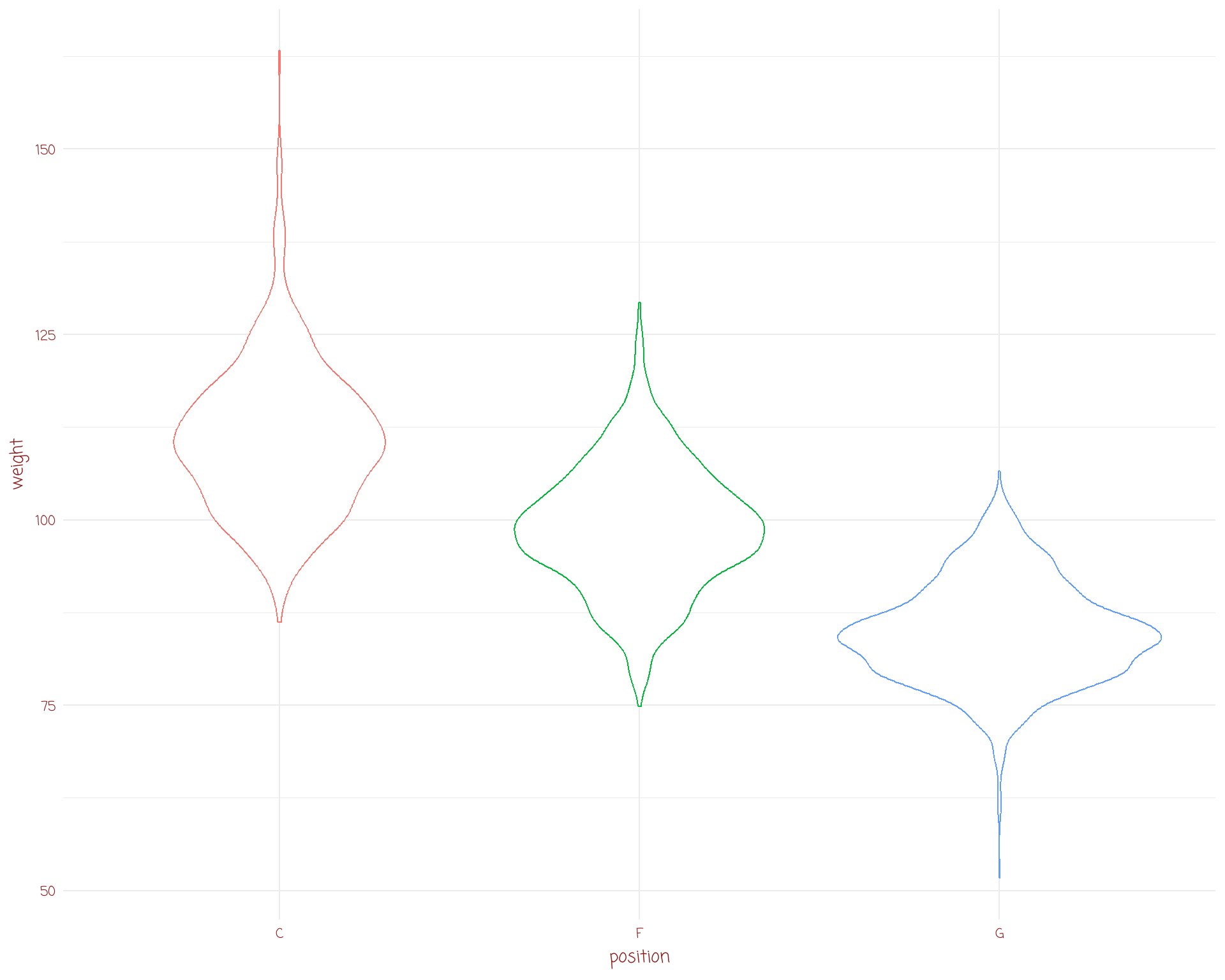

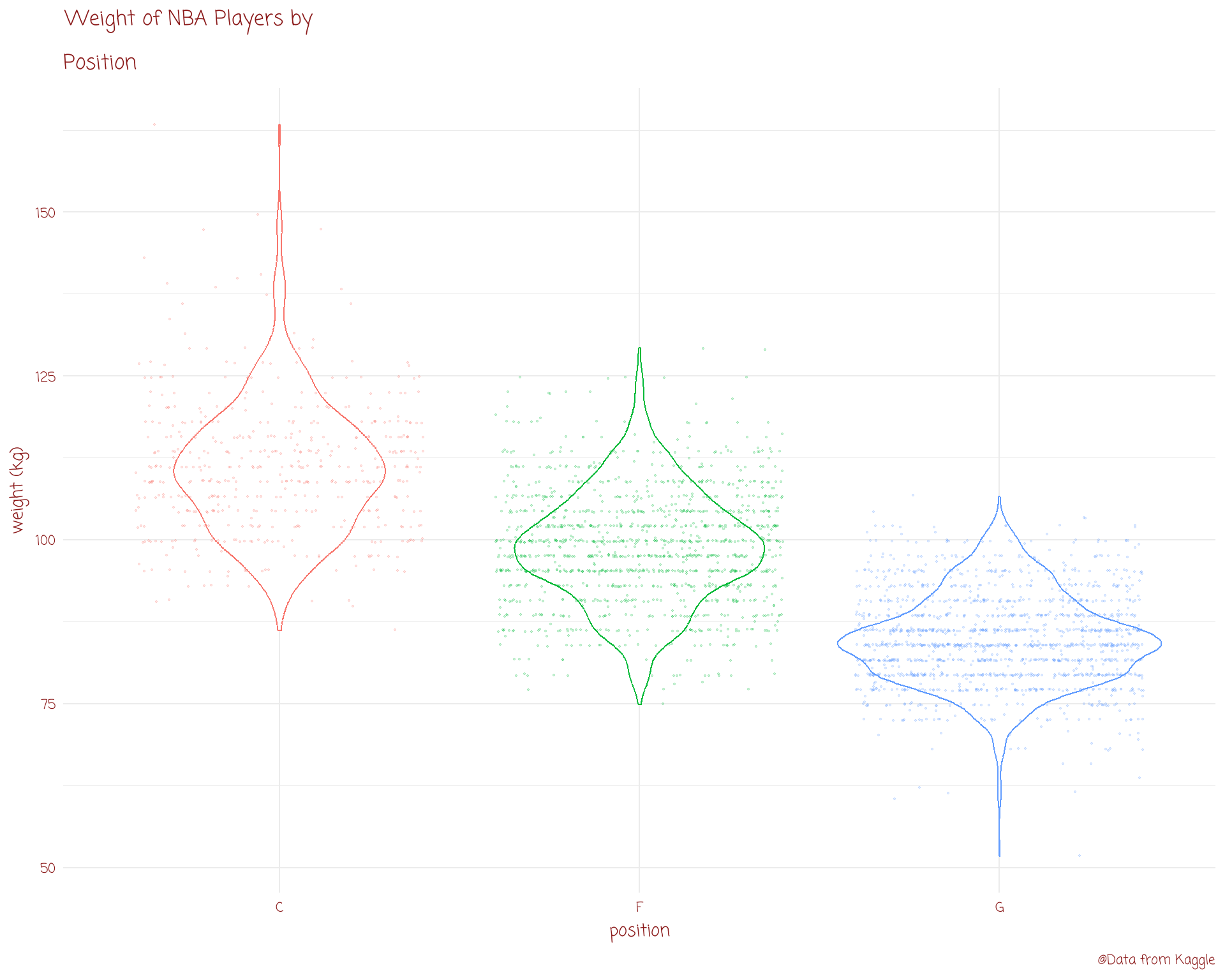

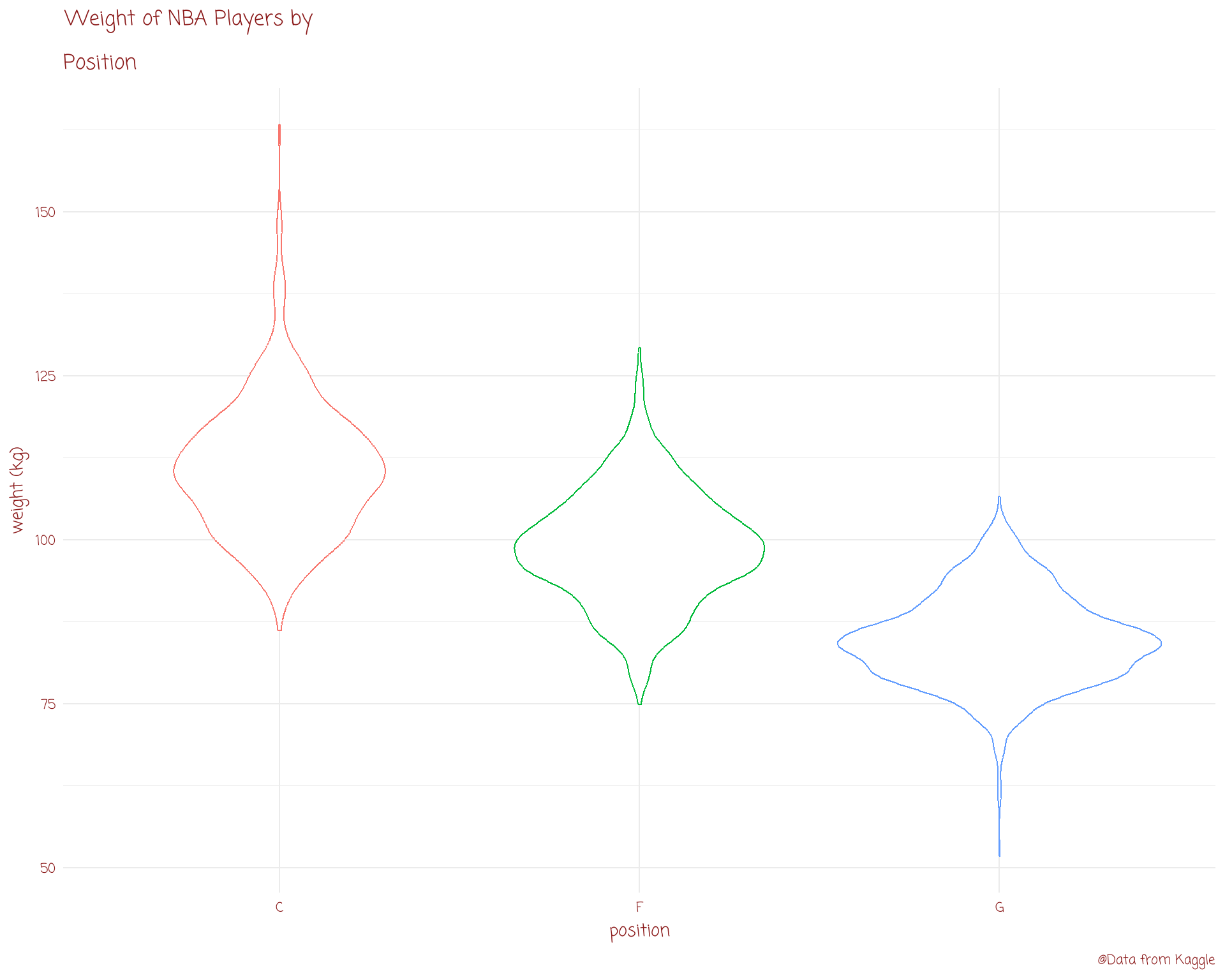

Violin Plot
Violin Plot
Violin Plot
Violin Plot

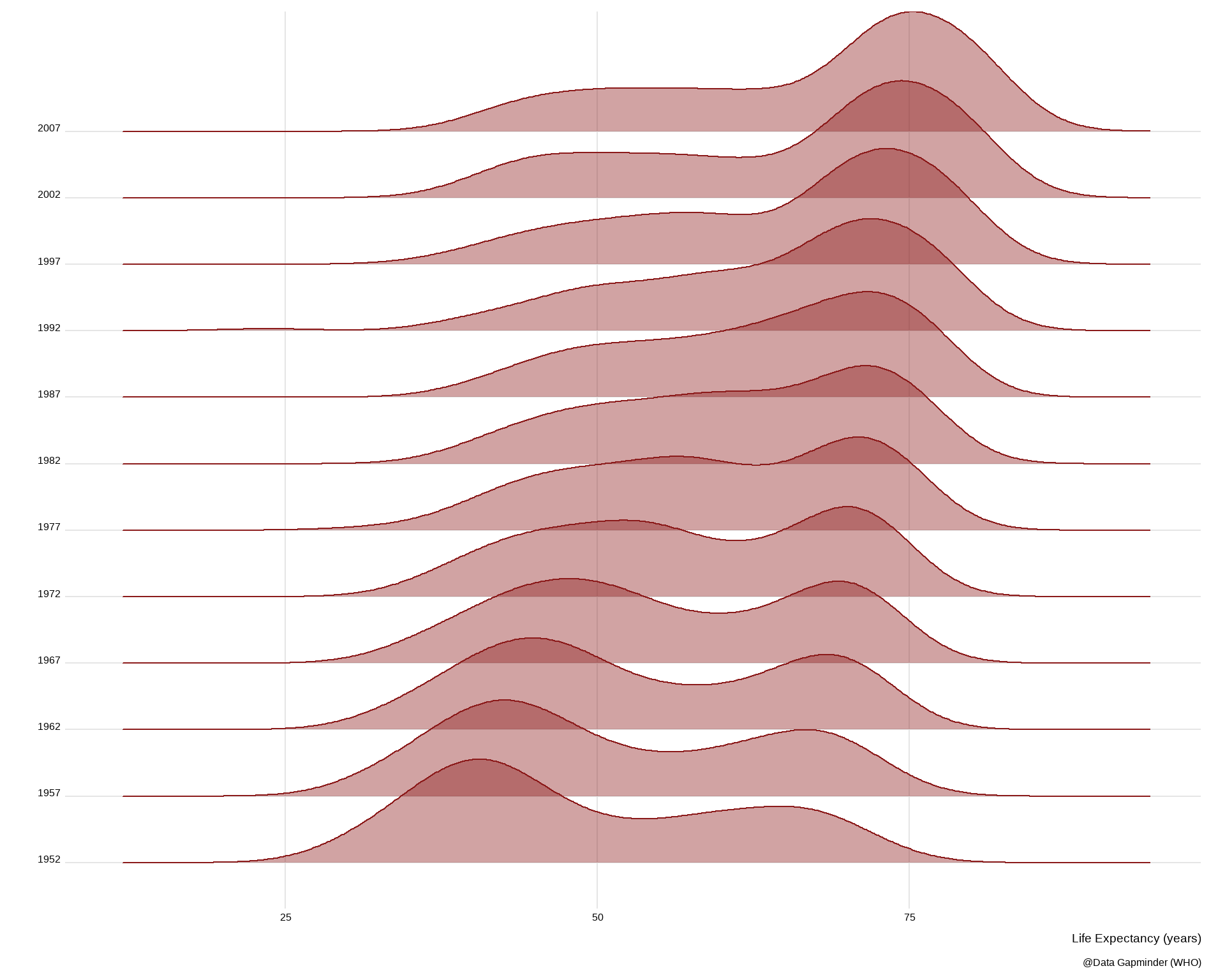

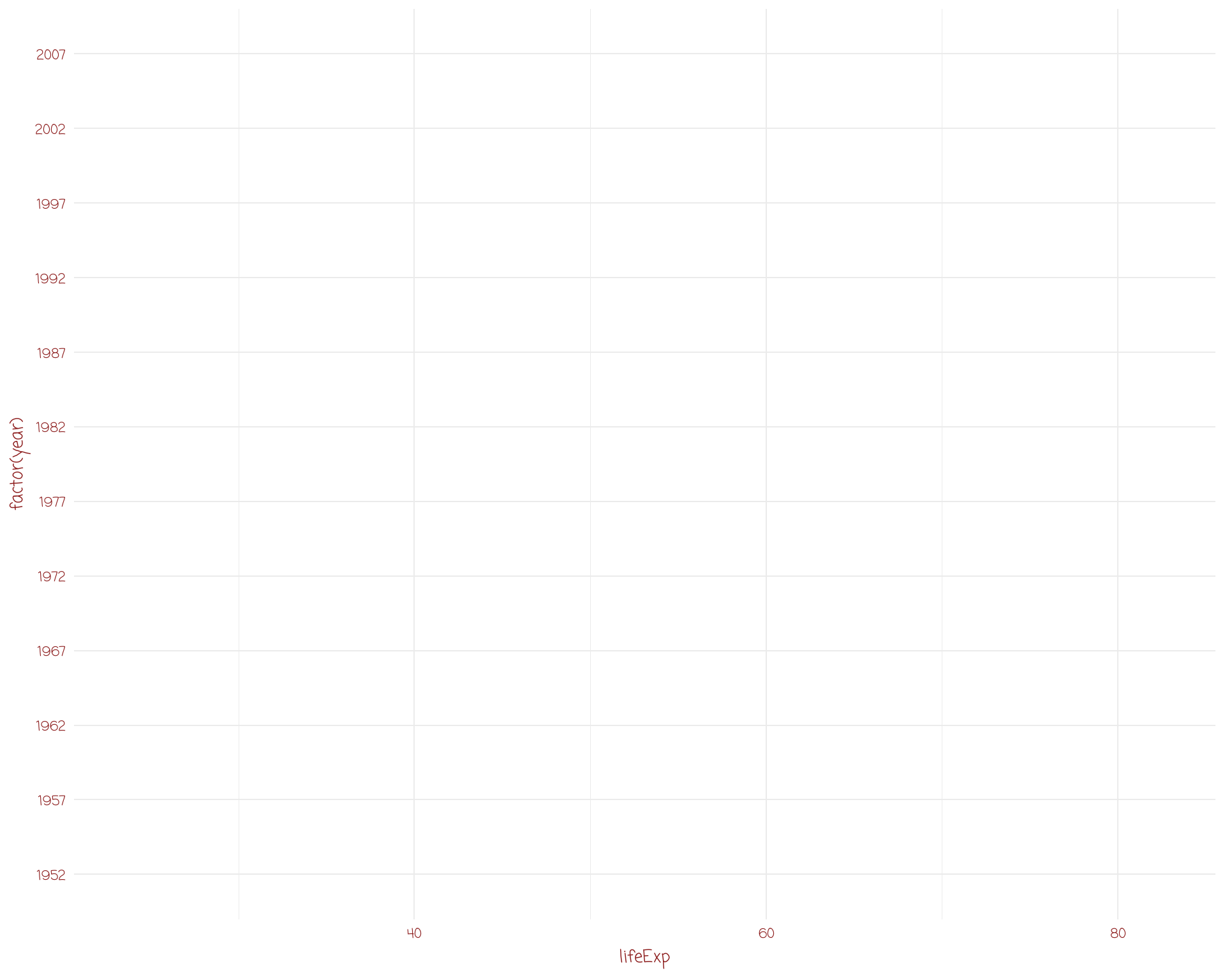

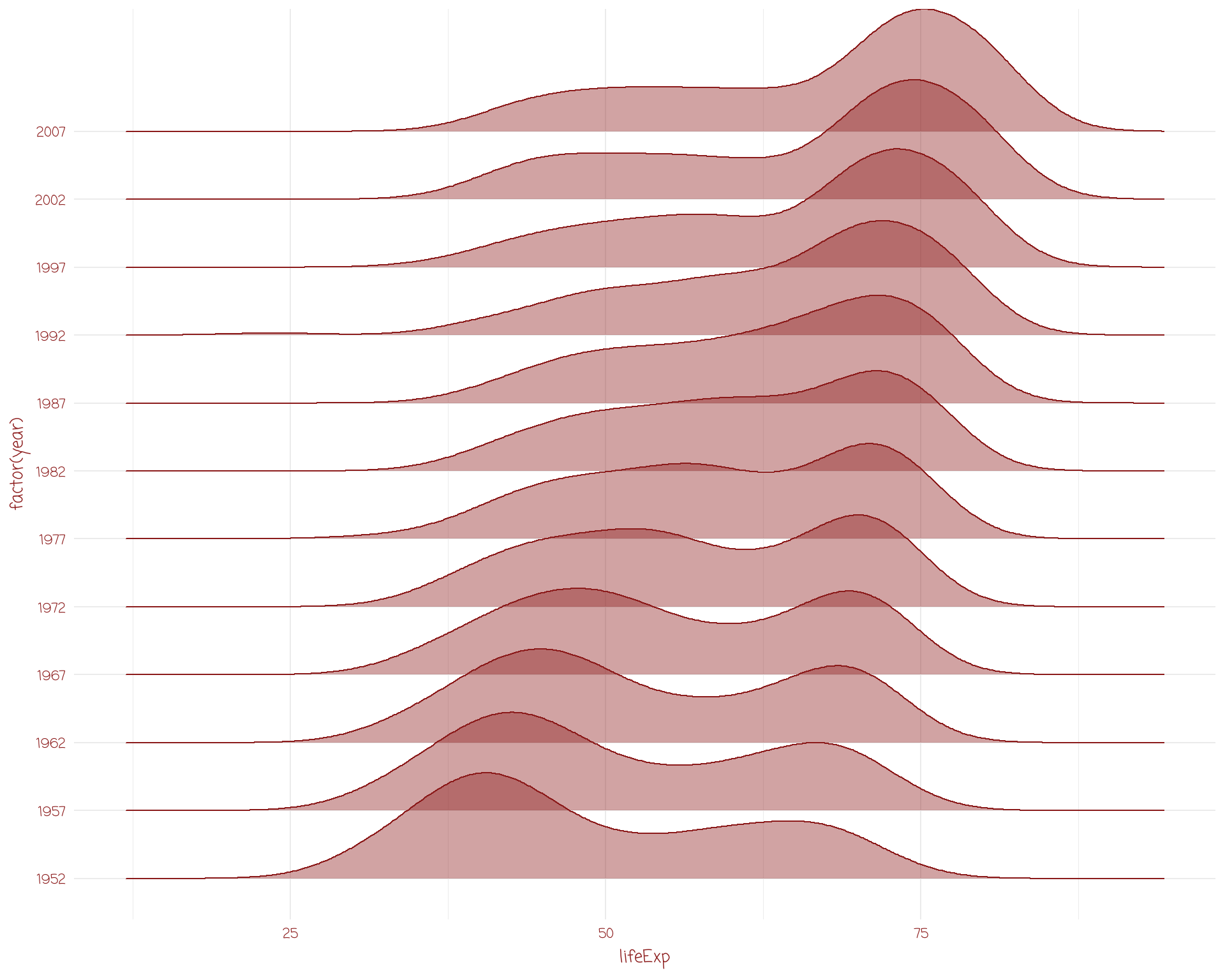

Ridge Plot
Ridge Plot
Ridge Plot
Ridge Plot

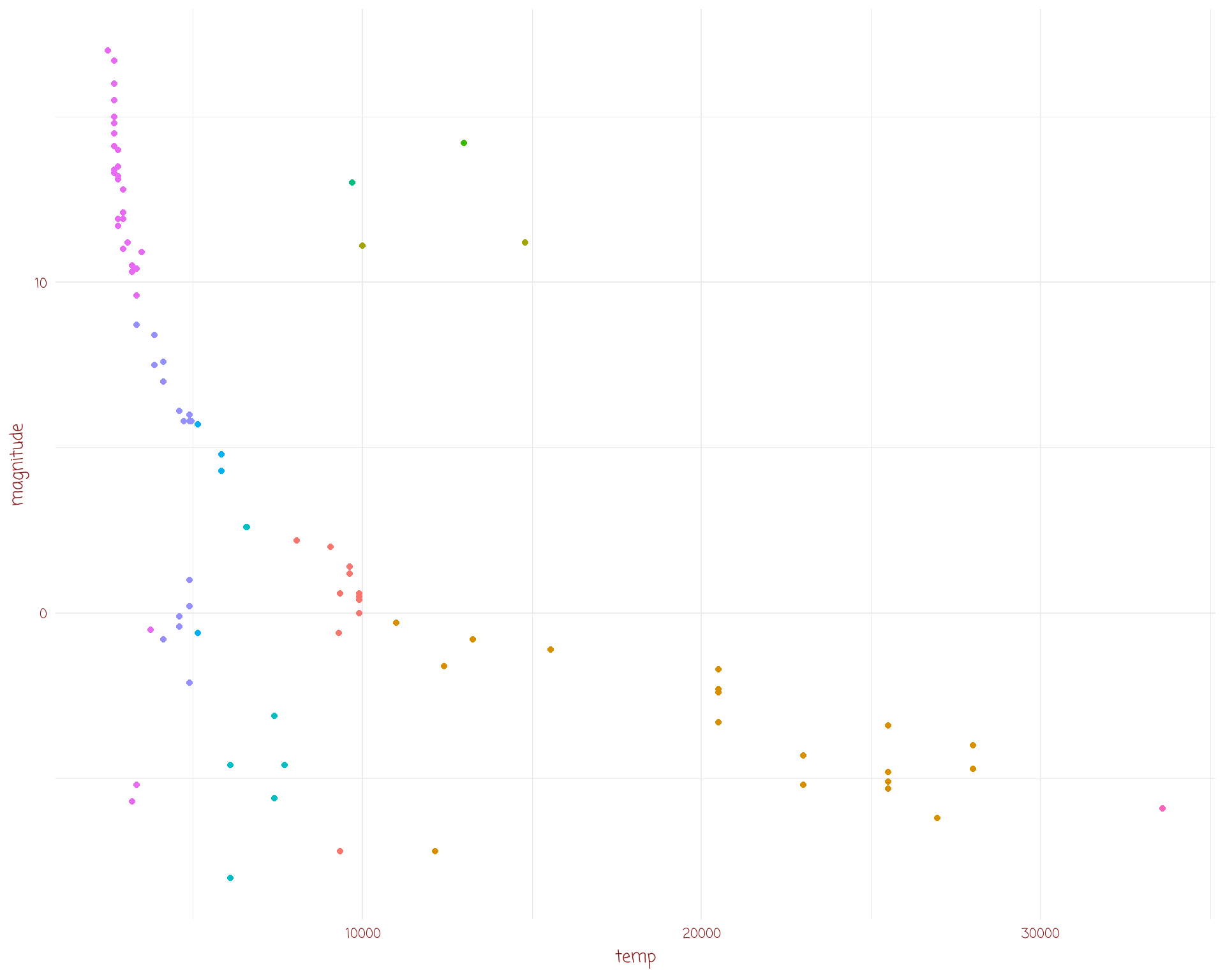

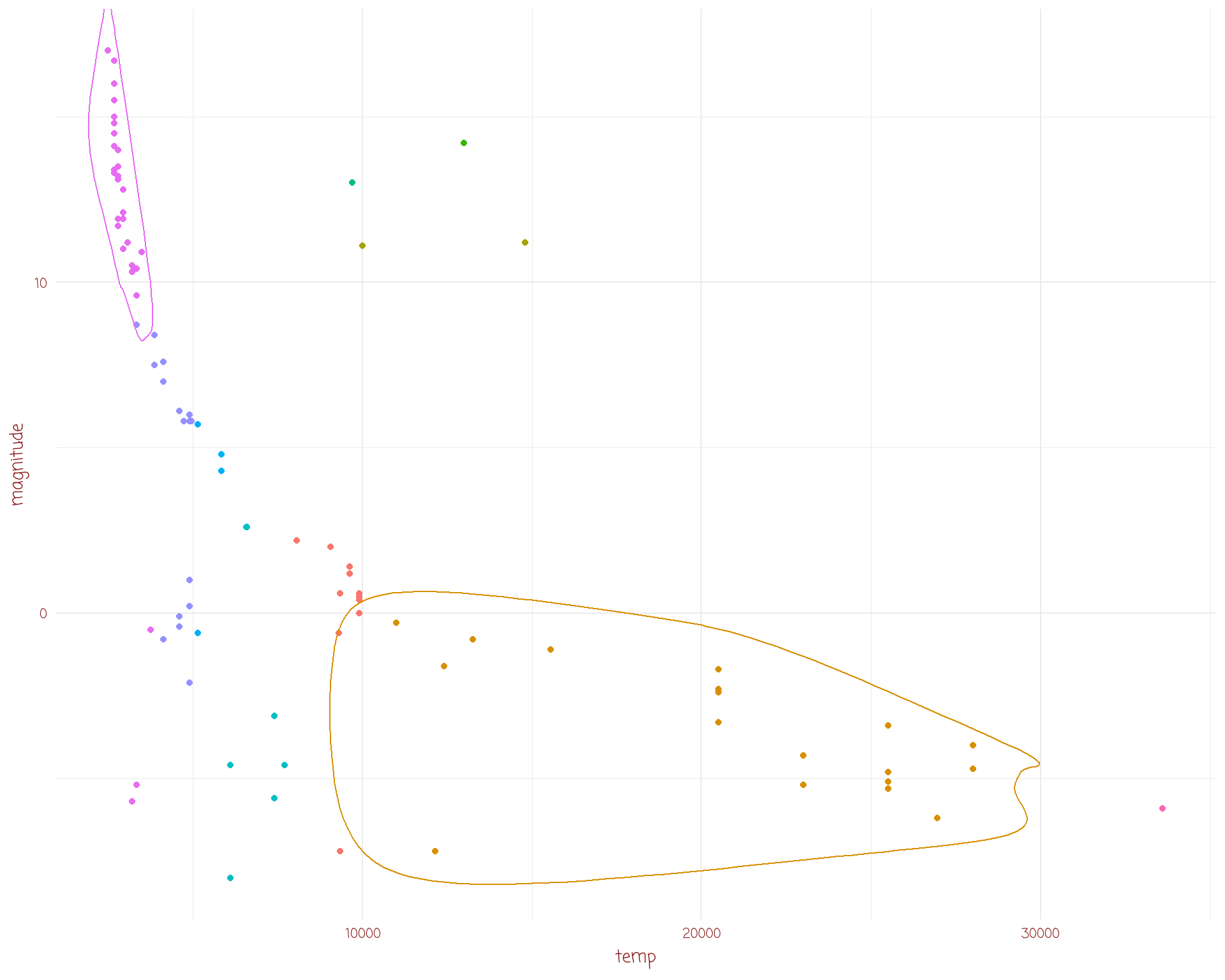

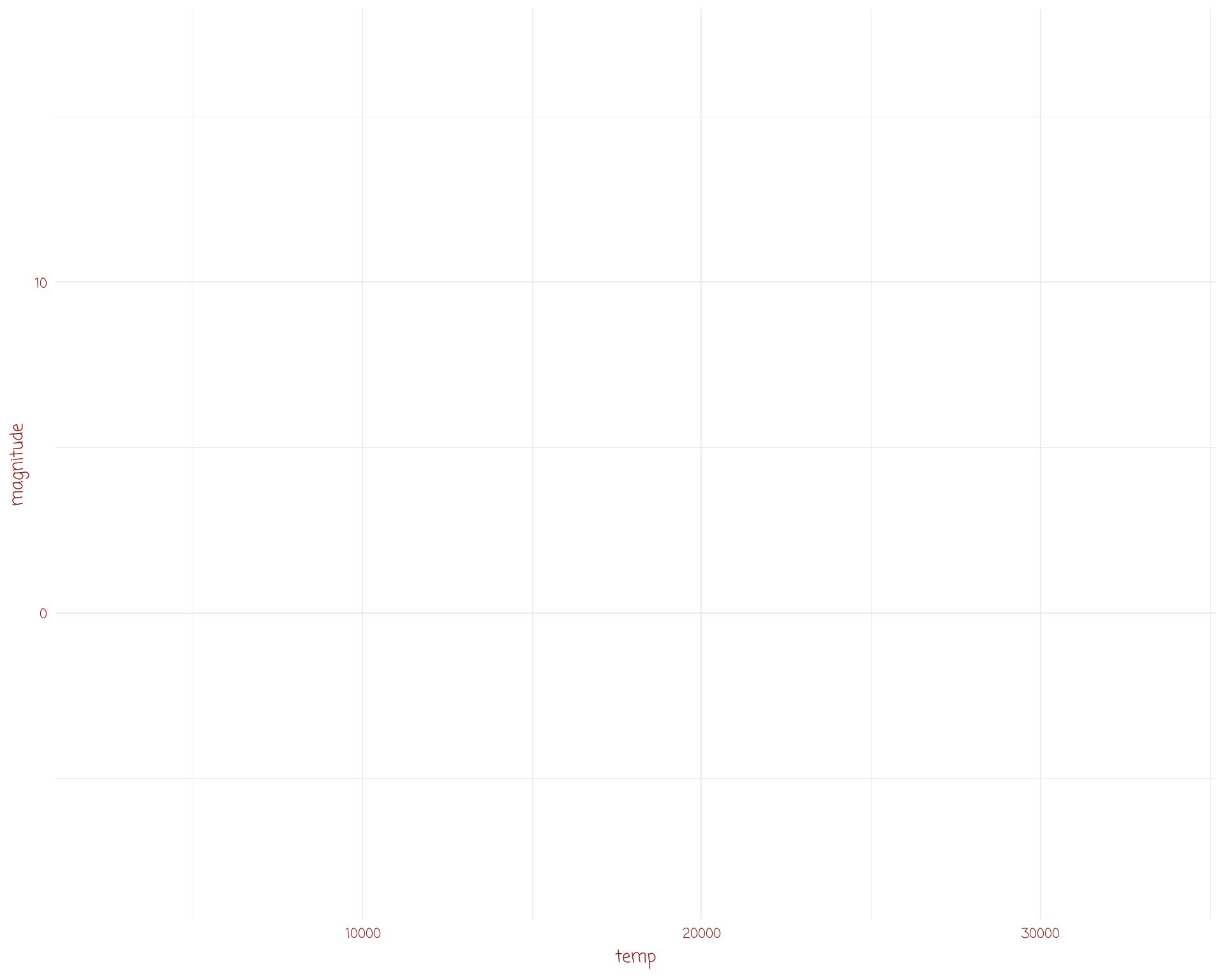

Encircle
Encircle
Encircle
Encircle
Encircle

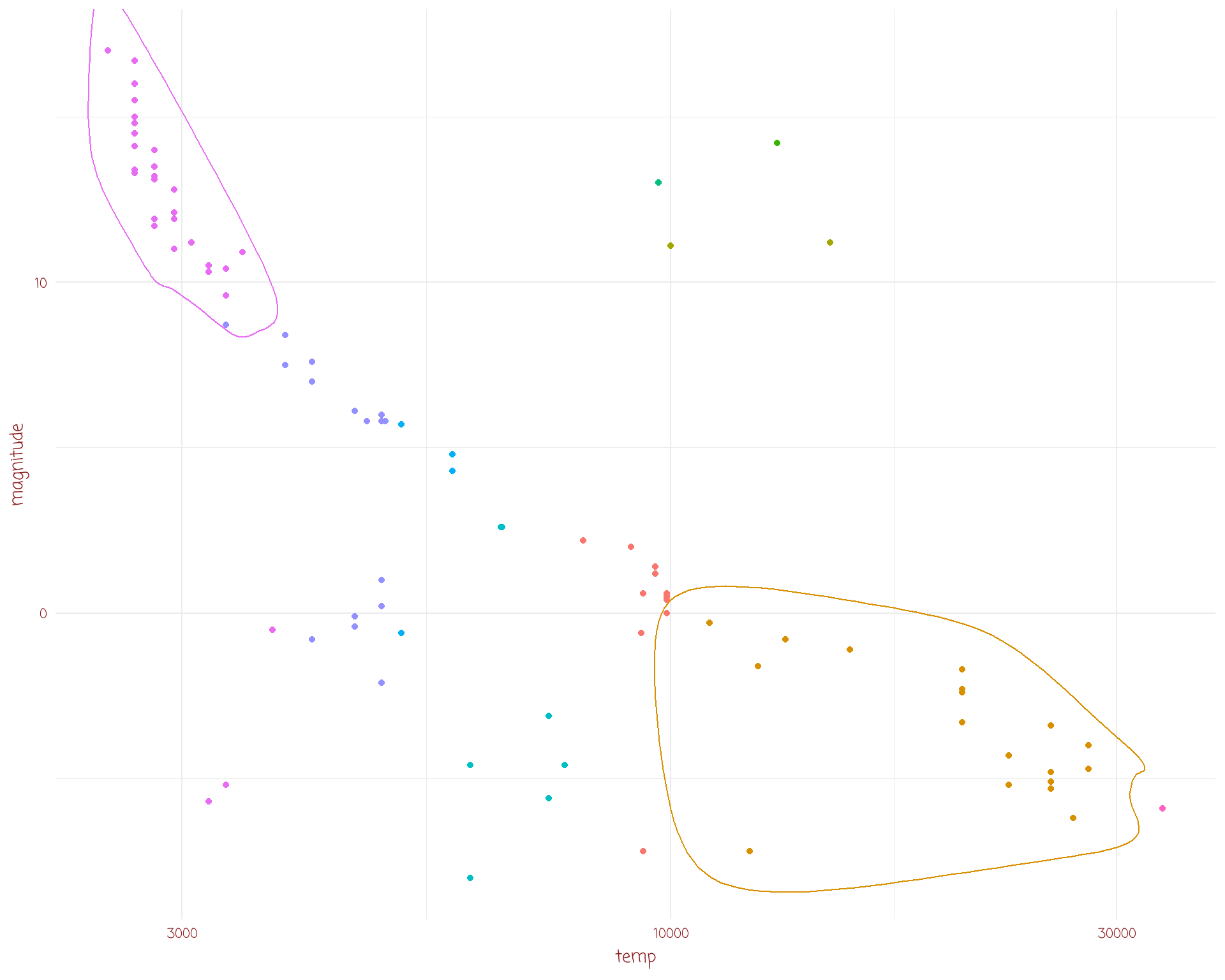

dslabs::stars %>%
ggplot(aes(temp,
magnitude,
col = type)) +
geom_point(show.legend = F) +
geom_encircle(data = dslabs::stars %>%
dplyr::filter(type == "B" | (type == "M" & magnitude > 9)),
show.legend = F) +
scale_x_log10() +
annotate("text",
x = c(15000, 5000),
y = c(-4, 14),
label = c("Type B Stars", "Faint Type M Stars"),
col = c("blue", "olivedrab3"),
family = "Ink Free",
size = 4,
fontface = 2)

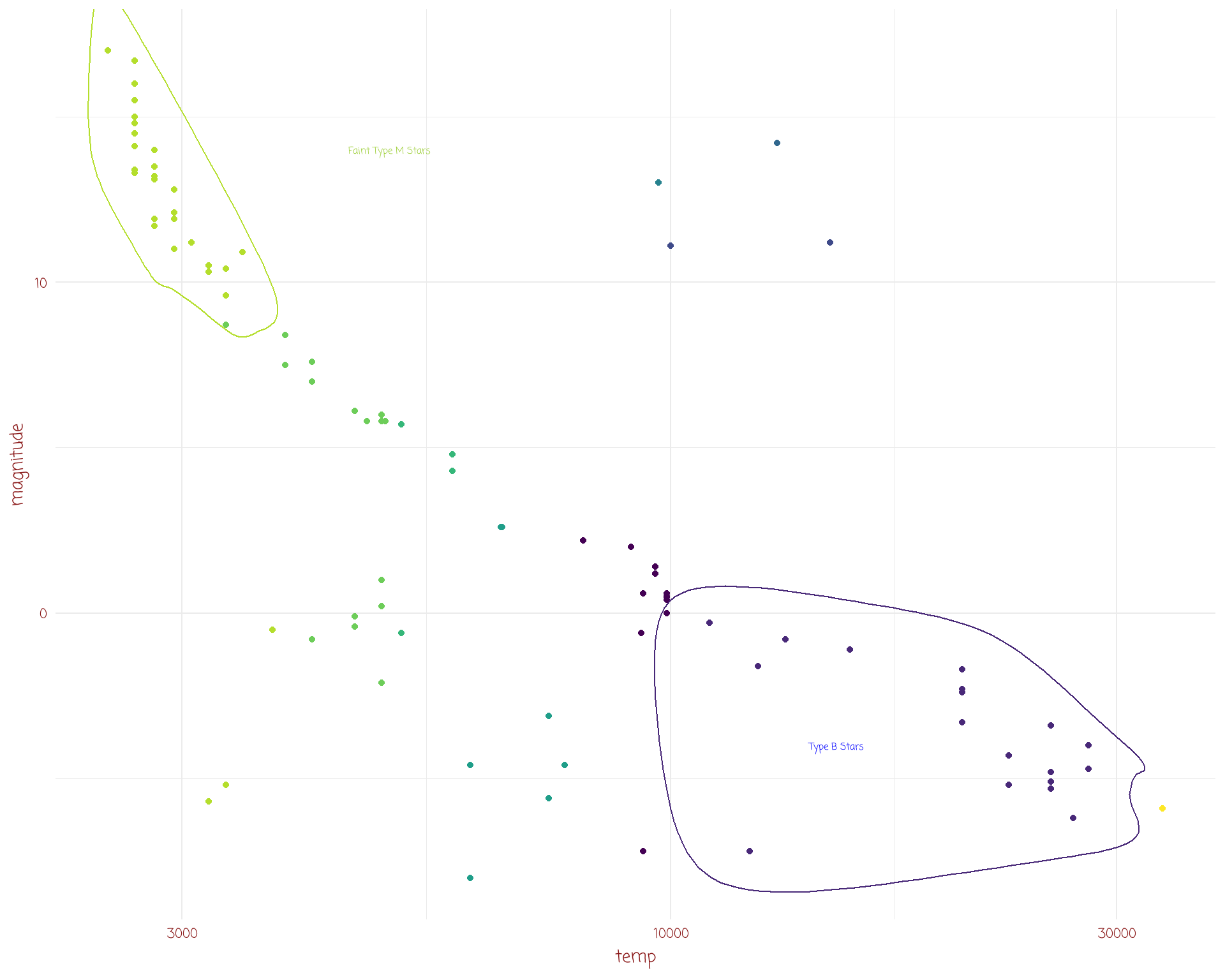

Encircle
dslabs::stars %>%
ggplot(aes(temp,
magnitude,
col = type)) +
geom_point(show.legend = F) +
geom_encircle(data = dslabs::stars %>%
dplyr::filter(type == "B" | (type == "M" & magnitude > 9)),
show.legend = F) +
scale_x_log10() +
annotate("text",
x = c(15000, 5000),
y = c(-4, 14),
label = c("Type B Stars", "Faint Type M Stars"),
col = c("blue", "olivedrab3"),
family = "Ink Free",
size = 4,
fontface = 2) +
scale_color_viridis_d()
Types of Colour Scales

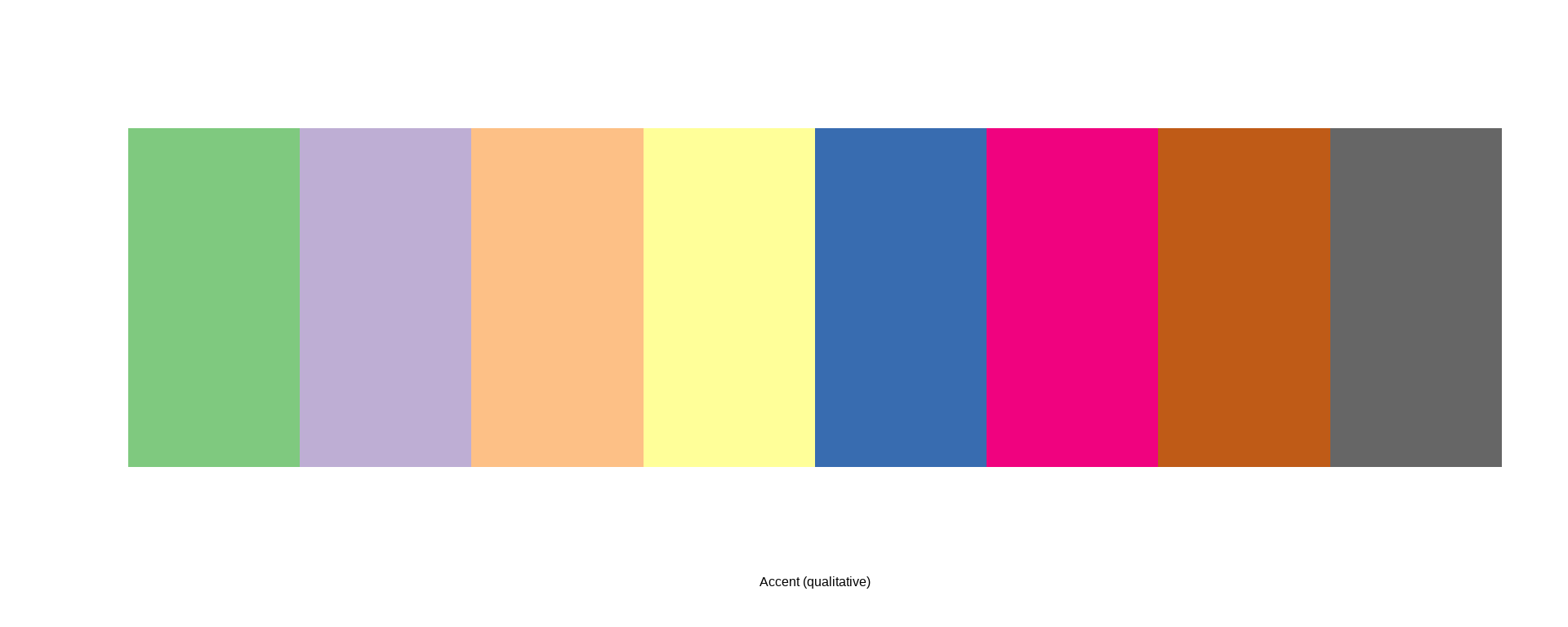

qualitative
- suite of colours that are easily distinguished
- no heirarchy
- caters for visual impairments

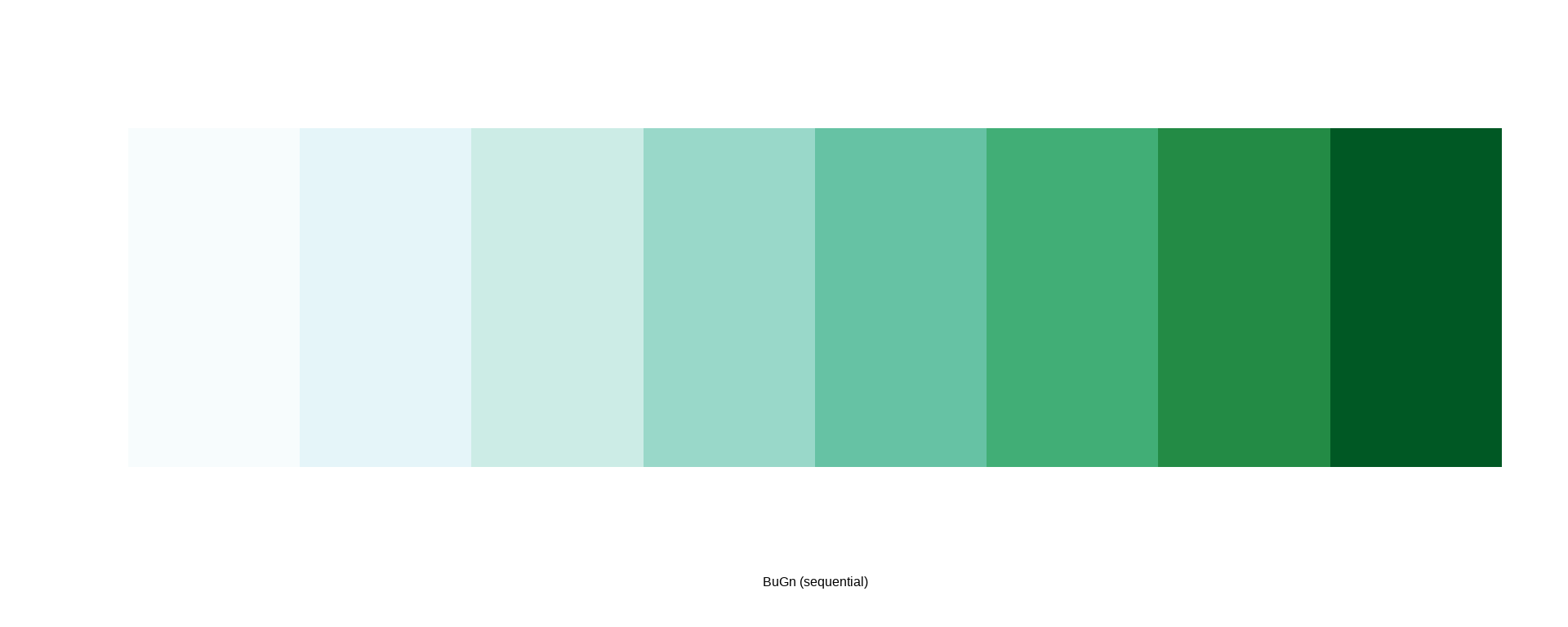

sequential
- band of colours that are increasingly intense
- go from low to high

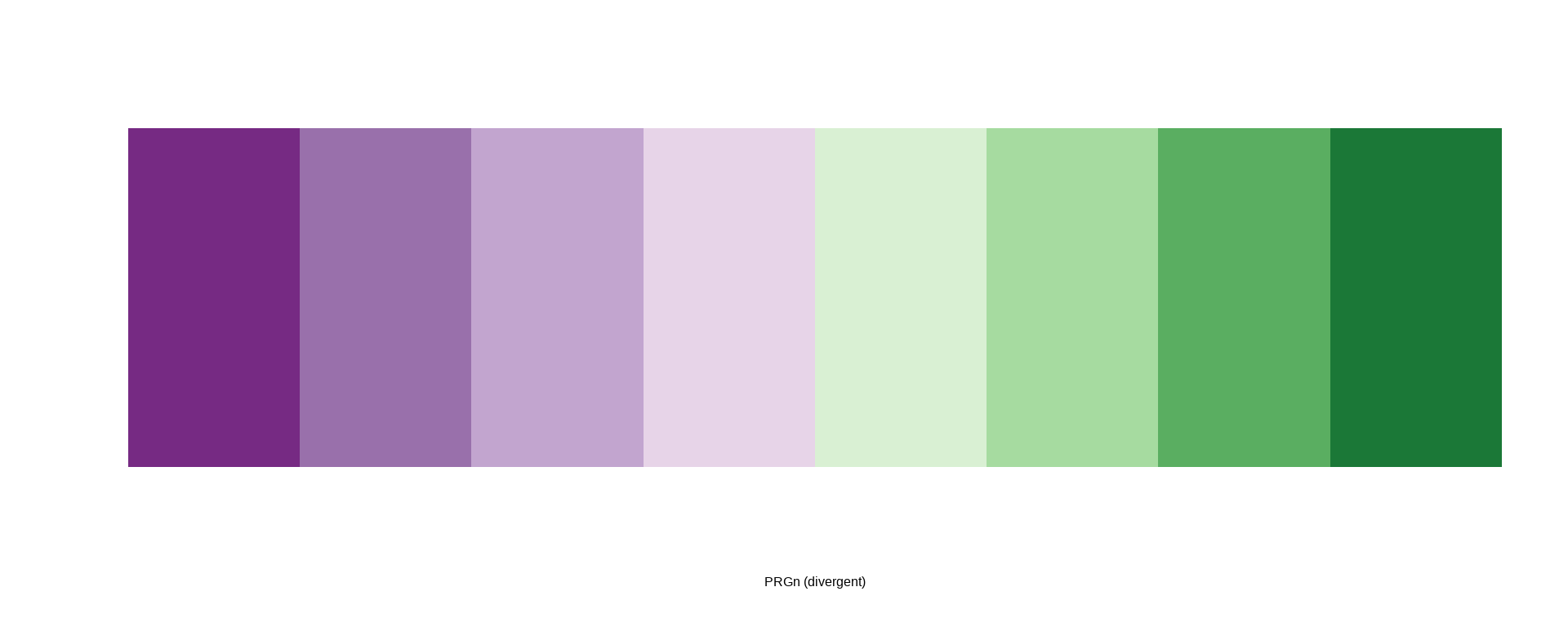

diverging
- suite of colours that go from minus to plus
- contrasting colours at each end
- something bland and neutral in the middle

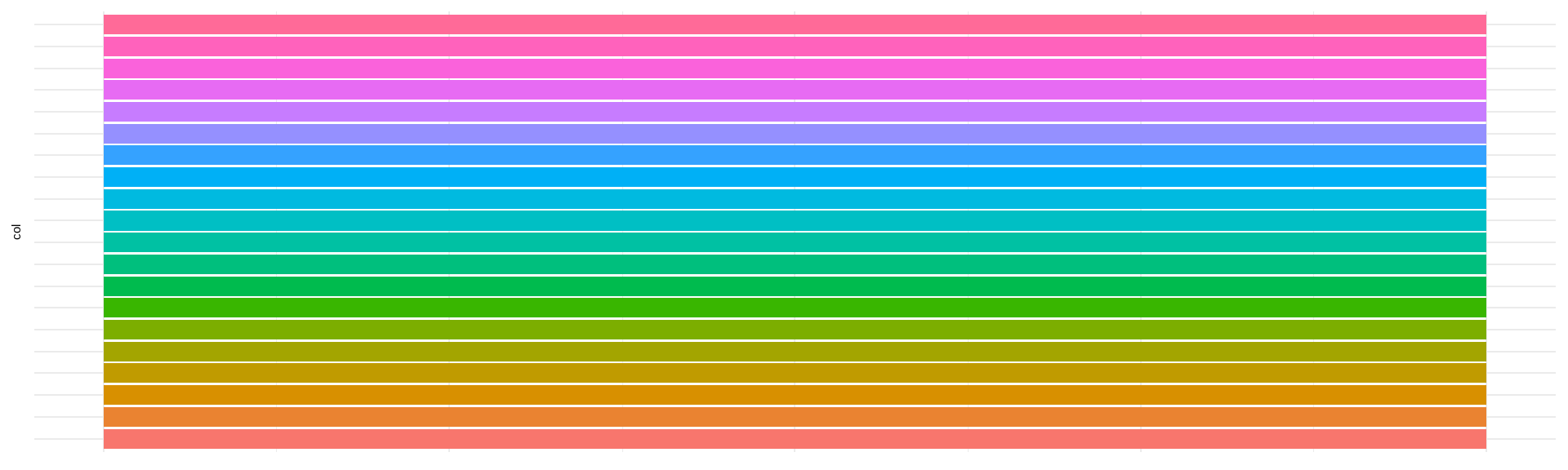

Investigating Colours in R
- the following code shows the first “N” colours in R where N is set to 20 here:

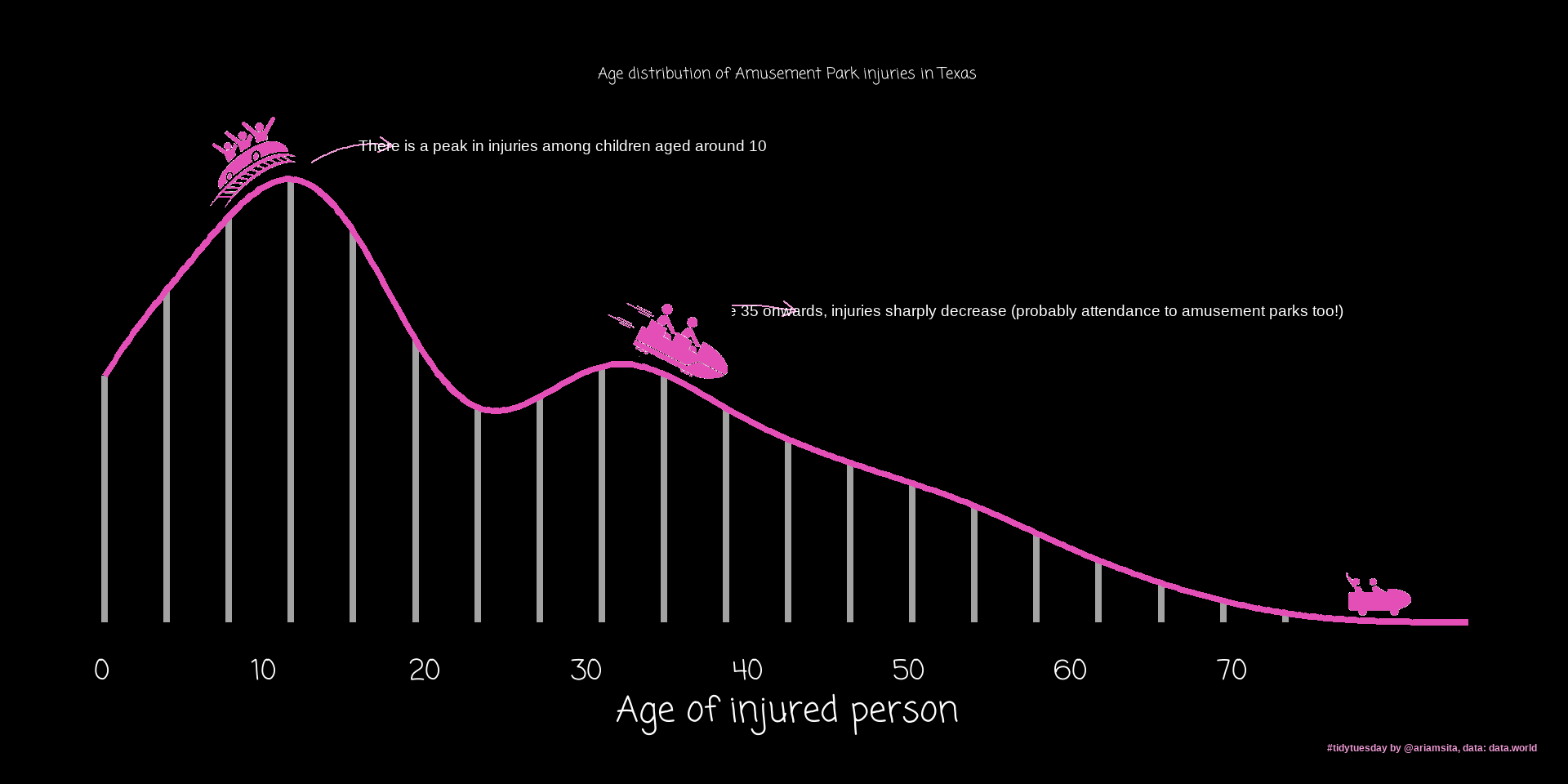

Assignment - Week Five
You are tasked with reproducing the following figure:
